Lecture 04, Notebook 02: IRBC with DEQNs — Irreversible Investment

RUN_MODE = "smoke"  # one of: "smoke", "teaching", "production"
SEED = 0

# ============================================================
# Imports, run-mode switch, and configuration (RUN_MODE/SEED from cell 2)
# ============================================================
import math
import numpy as np
import tensorflow as tf
from tensorflow import keras
import matplotlib.pyplot as plt

plt.rcParams["font.size"] = 13

np.random.seed(SEED)
tf.random.set_seed(SEED)
rng = np.random.default_rng(SEED)

# ------------------------------------------------------------
# Training-data switch
# ------------------------------------------------------------
SAMPLING_MODE = "simulation"       # "simulation" or "exogenous"

# ------------------------------------------------------------
# Training-budget switch
# ------------------------------------------------------------
# Examples:
#   N_TRAJECTORIES = 1,  SIMULATION_LENGTH = 1024   # one long trajectory
#   N_TRAJECTORIES = 10, SIMULATION_LENGTH = 256    # ten shorter tracks

if RUN_MODE == "smoke":
    NUM_SEGMENTS = 25
    N_TRAJECTORIES = 4
    SIMULATION_LENGTH = 32
    BATCH_SIZE = 128
    LEARNING_RATE = 3e-4
    MONITOR_EVERY = 5
elif RUN_MODE == "teaching":
    NUM_SEGMENTS = 401
    N_TRAJECTORIES = 10
    SIMULATION_LENGTH = 256
    BATCH_SIZE = 512
    LEARNING_RATE = 2e-4
    MONITOR_EVERY = 10
elif RUN_MODE == "production":
    NUM_SEGMENTS = 1601
    N_TRAJECTORIES = 32
    SIMULATION_LENGTH = 512
    BATCH_SIZE = 1024
    LEARNING_RATE = 1e-4
    MONITOR_EVERY = 25
else:
    raise ValueError(f"Unknown RUN_MODE: {RUN_MODE}")

PASSES_PER_SEGMENT = 1
SHUFFLE_STATES_WITHIN_SEGMENT = True

# Optimizer choices.  Supported names: "Adam", "AdamW", "RMSprop", "SGD".
OPTIMIZER_NAME = "Adam"
ADAM_BETA_1 = 0.9
ADAM_BETA_2 = 0.999
RMSPROP_RHO = 0.9
SGD_MOMENTUM = 0.0
WEIGHT_DECAY = 0.0
CLIP_NORM = 10.0                 # set to None to disable global gradient clipping

# Dimensionless residual weights.
EULER_WEIGHT = 1.0
ARC_WEIGHT = 1.0
FB_WEIGHT = 1.0                  # Fischer--Burmeister complementarity residual

EXOGENOUS_STATES_PER_SEGMENT = N_TRAJECTORIES * SIMULATION_LENGTH

EMERGENCY_REPAIR_BAD_STATES = True
SIM_REPAIR_K_MIN = 0.05
SIM_REPAIR_K_MAX = 8.0
SIM_REPAIR_ABS_Z_MAX_MULTIPLE = 8.0

# ------------------------------------------------------------

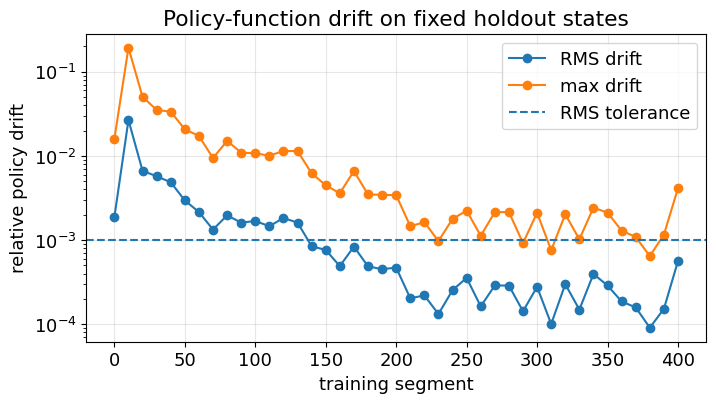

# Convergence diagnostics: policy drift and zero-shock steady state
# ------------------------------------------------------------
# A feed-forward policy network without calendar time as an input is
# time-homogeneous by construction.  The economically relevant check is
# whether the *learned function* has stopped changing across SGD updates.
# We therefore evaluate policies on a fixed anchor cloud that is never used
# for training and monitor the monitor-to-monitor policy drift.
if RUN_MODE == "smoke":
    TIME_INVARIANCE_ANCHOR_STATES = 256
    ZERO_SHOCK_N_STARTS = 8
    ZERO_SHOCK_MAX_STEPS = 250
elif RUN_MODE == "teaching":
    TIME_INVARIANCE_ANCHOR_STATES = 2048
    ZERO_SHOCK_N_STARTS = 32
    ZERO_SHOCK_MAX_STEPS = 750
elif RUN_MODE == "production":
    TIME_INVARIANCE_ANCHOR_STATES = 4096
    ZERO_SHOCK_N_STARTS = 64
    ZERO_SHOCK_MAX_STEPS = 1500
else:
    raise ValueError(f"Unknown RUN_MODE: {RUN_MODE}")

TIME_INVARIANCE_TOL_RMS = 1.0e-3
TIME_INVARIANCE_TOL_MAX = 1.0e-2

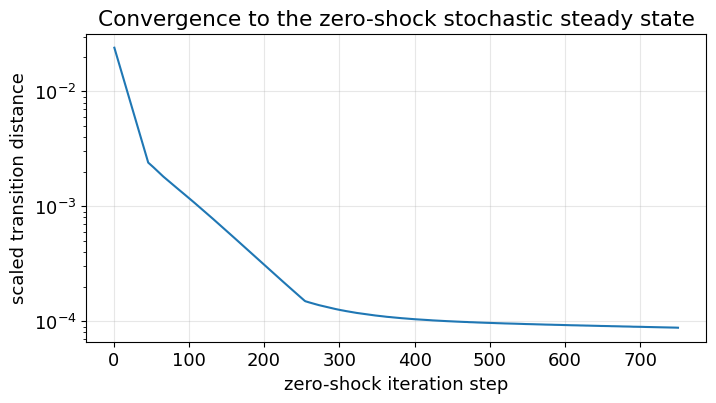

# The stochastic steady state is computed as the fixed point of the learned
# stochastic policy when the realized shocks are set to zero.  This is not
# the deterministic steady state of the non-stochastic economy; the policy
# still embodies the stochastic Euler equations.
RUN_ZERO_SHOCK_STEADY_STATE_CHECK = True
ZERO_SHOCK_TOL = 1.0e-7
ZERO_SHOCK_FIXED_POINT_TOL = 1.0e-4
ZERO_SHOCK_Z_TOL = 1.0e-4
ZERO_SHOCK_CROSS_TRACK_TOL = 5.0e-3
SSS_MEAN_RESIDUAL_TOL = 1.0e-2
SSS_K_MIN_OK = 0.20
SSS_K_MAX_OK = 5.00

print(f"TensorFlow version: {tf.__version__}")
print(f"SAMPLING_MODE = {SAMPLING_MODE}")
print(f"RUN_MODE = {RUN_MODE}")
print(f"N_TRAJECTORIES = {N_TRAJECTORIES}")
print(f"SIMULATION_LENGTH = {SIMULATION_LENGTH}")
print(f"states per segment = {N_TRAJECTORIES * SIMULATION_LENGTH}")
print(f"optimizer = {OPTIMIZER_NAME}, learning rate = {LEARNING_RATE}")
print(f"batch size = {BATCH_SIZE}, passes per segment = {PASSES_PER_SEGMENT}")
print(f"time-invariance anchor states = {TIME_INVARIANCE_ANCHOR_STATES}")
print(f"zero-shock starts = {ZERO_SHOCK_N_STARTS}, max steps = {ZERO_SHOCK_MAX_STEPS}")

# ============================================================
# IRBC parameters
# ============================================================
N_COUNTRIES = 2

beta = 0.99
zeta = 0.36
delta = 0.01
rho_z = 0.95
sigma_e = 0.01
kappa = 0.50

gamma_min = 0.25
gamma_max = 1.00

K_REF = 1.0
LAMBDA_REF = 1.0

A_tfp = (1.0 / beta - 1.0 + delta) / (zeta * K_REF ** (zeta - 1.0))
Y_ref = A_tfp * K_REF ** zeta
C_ref = Y_ref - delta * K_REF

if N_COUNTRIES == 1:
    gammas_np = np.array([gamma_min], dtype=np.float32)
else:
    gammas_np = np.linspace(gamma_min, gamma_max, N_COUNTRIES, dtype=np.float32)

taus_np = LAMBDA_REF * C_ref ** (1.0 / gammas_np)
gammas_tf = tf.constant(gammas_np.reshape(1, N_COUNTRIES), dtype=tf.float32)
taus_tf = tf.constant(taus_np.reshape(1, N_COUNTRIES), dtype=tf.float32)

n_states = 2 * N_COUNTRIES
n_policies = 2 * N_COUNTRIES + 1  # raw investment controls, lambda, raw mu's
n_shocks = N_COUNTRIES + 1

z_std = sigma_e * math.sqrt(2.0 / (1.0 - rho_z ** 2))
z_bound = 3.0 * z_std

EXOGENOUS_K_LOW = 0.55
EXOGENOUS_K_HIGH = 1.80
EXOGENOUS_Z_LOW = -z_bound
EXOGENOUS_Z_HIGH = z_bound

INITIAL_K_LOW = 0.65
INITIAL_K_HIGH = 1.45
INITIAL_Z_LOW = -1.5 * z_std
INITIAL_Z_HIGH = 1.5 * z_std

SIM_REPAIR_ABS_Z_MAX = SIM_REPAIR_ABS_Z_MAX_MULTIPLE * z_std

print("=== Irreversible IRBC parameters ===")
print(f"N_COUNTRIES = {N_COUNTRIES}")
print(f"states = {n_states}, policies = {n_policies}, shocks = {n_shocks}")
print(f"A_tfp = {A_tfp:.6f}, Y_ref = {Y_ref:.6f}, C_ref = {C_ref:.6f}")
print(f"gammas = {gammas_np}")
print(f"taus = {taus_np}")
print(f"z_std = {z_std:.5f}")
print(f"exogenous k box = [{EXOGENOUS_K_LOW}, {EXOGENOUS_K_HIGH}]")
print(f"exogenous z box = [{EXOGENOUS_Z_LOW:.5f}, {EXOGENOUS_Z_HIGH:.5f}]")
print(f"initial k box = [{INITIAL_K_LOW}, {INITIAL_K_HIGH}]")
print(f"initial z box = [{INITIAL_Z_LOW:.5f}, {INITIAL_Z_HIGH:.5f}]")

def make_monomial_rule(dim):
    """Monomial rule for E[f(eps)] with eps ~ N(0,I_dim)."""
    radius = math.sqrt(dim)
    nodes = []
    weights = []
    for i in range(dim):
        e = np.zeros(dim, dtype=np.float32)
        e[i] = radius
        nodes.append(e.copy())
        e[i] = -radius
        nodes.append(e.copy())
        weights.extend([1.0 / (2.0 * dim), 1.0 / (2.0 * dim)])
    return np.asarray(nodes, dtype=np.float32), np.asarray(weights, dtype=np.float32)

quad_nodes_np, quad_weights_np = make_monomial_rule(n_shocks)
quad_nodes_tf = tf.constant(quad_nodes_np, dtype=tf.float32)
quad_weights_tf = tf.constant(quad_weights_np.reshape(-1, 1), dtype=tf.float32)
n_quad = quad_nodes_np.shape[0]

print(f"quadrature nodes = {n_quad}")
print(f"sum of quadrature weights = {quad_weights_np.sum():.6f}")

INPUT_K_LOG_SCALE = 0.50
INPUT_Z_SCALE = max(z_bound, 1e-6)
LAMBDA_LOG_SCALE = 1.25

# The investment fraction is bounded above by INVESTMENT_MAX_FRACTION.
# The bias makes the initial policy approximately I = delta*k.
INVESTMENT_MAX_FRACTION = 0.25
initial_investment_fraction = min(max(delta / INVESTMENT_MAX_FRACTION, 1e-5), 1.0 - 1e-5)
INVESTMENT_BIAS = math.log(initial_investment_fraction / (1.0 - initial_investment_fraction))

# Multipliers are nonnegative.  A negative bias initializes them close to zero.
MU_SOFTPLUS_BIAS = -10.0
MU_SCALE = 1.0

NUM_HIDDEN_1 = 128
NUM_HIDDEN_2 = 128
ACTIVATION = "tanh"

def scale_states(states):
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    k = tf.maximum(states[:, :N_COUNTRIES], 1e-8)
    z = states[:, N_COUNTRIES:]
    k_scaled = tf.math.log(k / K_REF) / INPUT_K_LOG_SCALE
    z_scaled = z / INPUT_Z_SCALE
    return tf.concat([k_scaled, z_scaled], axis=1)

def build_network():
    return keras.Sequential([
        keras.layers.Input(shape=(n_states,)),
        keras.layers.Dense(NUM_HIDDEN_1, activation=ACTIVATION),
        keras.layers.Dense(NUM_HIDDEN_2, activation=ACTIVATION),
        keras.layers.Dense(
            n_policies,
            activation=None,
            kernel_initializer="zeros",
            bias_initializer="zeros",
        ),
    ])

def policy(states, model):
    """Map states to feasible irreversible-investment policies."""
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    k = tf.maximum(states[:, :N_COUNTRIES], 1e-8)
    raw = model(scale_states(states))

    raw_inv = raw[:, :N_COUNTRIES]
    raw_lambda = raw[:, N_COUNTRIES:N_COUNTRIES + 1]
    raw_mu = raw[:, N_COUNTRIES + 1:]

    investment_fraction = INVESTMENT_MAX_FRACTION * tf.sigmoid(raw_inv + INVESTMENT_BIAS)
    investment = k * investment_fraction
    kp = (1.0 - delta) * k + investment

    lamb = LAMBDA_REF * tf.exp(LAMBDA_LOG_SCALE * tf.tanh(raw_lambda))
    mu = MU_SCALE * lamb * tf.nn.softplus(raw_mu + MU_SOFTPLUS_BIAS)
    return kp, lamb, mu, investment, investment_fraction

model_check = build_network()
X_check = tf.constant(np.concatenate([
    np.ones((3, N_COUNTRIES), dtype=np.float32),
    np.zeros((3, N_COUNTRIES), dtype=np.float32),
], axis=1))
kp_check, lambda_check, mu_check, I_check, Ifrac_check = policy(X_check, model_check)
print("initial policy k' rows:\n", kp_check.numpy())
print("initial investment fraction rows:\n", Ifrac_check.numpy())
print("initial mu rows:\n", mu_check.numpy())

EPS = 1e-8
FB_EPS = 1e-4

def production(k, z):
    return A_tfp * tf.exp(z) * tf.pow(tf.maximum(k, EPS), zeta)

def production_k(k, z):
    return zeta * A_tfp * tf.exp(z) * tf.pow(tf.maximum(k, EPS), zeta - 1.0)

def adjustment_cost(k, kp):
    k_safe = tf.maximum(k, EPS)
    g = kp / k_safe - 1.0
    return 0.5 * kappa * k_safe * g ** 2

def adjustment_cost_kp(k, kp):
    k_safe = tf.maximum(k, EPS)
    return kappa * (kp / k_safe - 1.0)

def consumption_from_lambda(lamb):
    return tf.pow(tf.maximum(lamb, EPS) / taus_tf, -gammas_tf)

def fischer_burmeister(a, b):
    """Smooth Fischer--Burmeister residual for a>=0, b>=0, a*b=0."""
    return a + b - tf.sqrt(a * a + b * b + FB_EPS * FB_EPS)

def next_state_from_shock(states, kp, shock):
    z = states[:, N_COUNTRIES:]
    eps_idio = shock[:N_COUNTRIES][tf.newaxis, :]
    eps_agg = shock[N_COUNTRIES]
    z_next = rho_z * z + sigma_e * (eps_idio + eps_agg)
    return tf.concat([kp, z_next], axis=1)

def compute_residuals(states, model):
    """Return loss and residual tensors for the irreversible IRBC model."""
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    k = states[:, :N_COUNTRIES]
    z = states[:, N_COUNTRIES:]
    kp, lamb, mu, investment, investment_fraction = policy(states, model)

    # Euler equation.  Rearranged as lambda*(1+dGamma/dk') = beta*E[...] + mu.
    lhs = lamb * (1.0 + adjustment_cost_kp(k, kp))
    expectation = tf.zeros_like(kp)

    for q in range(n_quad):
        state_next = next_state_from_shock(states, kp, quad_nodes_tf[q])
        kp_next, lambda_next, mu_next, investment_next, investment_fraction_next = policy(state_next, model)
        k_next = state_next[:, :N_COUNTRIES]
        z_next = state_next[:, N_COUNTRIES:]
        g_next = kp_next / tf.maximum(k_next, EPS) - 1.0
        return_next = (
            production_k(k_next, z_next)
            + 1.0 - delta
            + 0.5 * kappa * g_next * (g_next + 2.0)
        )
        integrand = lambda_next * return_next - (1.0 - delta) * mu_next
        expectation = expectation + quad_weights_tf[q] * integrand

    rhs = beta * expectation + mu
    euler_res = rhs / tf.maximum(lhs, EPS) - 1.0

    y = production(k, z)
    c = consumption_from_lambda(lamb)
    gamma_cost = adjustment_cost(k, kp)
    arc_level = tf.reduce_sum(y + (1.0 - delta) * k - kp - gamma_cost - c, axis=1, keepdims=True)
    arc_scale = tf.reduce_sum(y + (1.0 - delta) * k, axis=1, keepdims=True)
    arc_res = arc_level / tf.maximum(arc_scale, EPS)

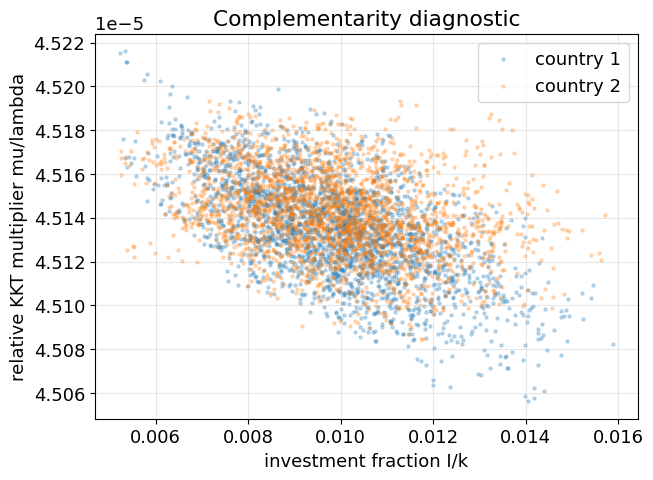

    # Complementarity 0 <= mu_j perpendicular I_j >= 0, written on the
    # normalized pair (mu/lambda, I/k); same zero set as the script's (mu, I).
    mu_rel = mu / tf.maximum(lamb, EPS)
    I_rel = investment / tf.maximum(k, EPS)   # investment fraction
    fb_res = fischer_burmeister(mu_rel, I_rel)
    comp_product = mu_rel * I_rel

    loss_euler = tf.reduce_mean(euler_res ** 2)
    loss_arc = tf.reduce_mean(arc_res ** 2)
    loss_fb = tf.reduce_mean(fb_res ** 2)
    loss = EULER_WEIGHT * loss_euler + ARC_WEIGHT * loss_arc + FB_WEIGHT * loss_fb
    return loss, euler_res, arc_res, fb_res, kp, lamb, mu, investment, investment_fraction, comp_product

def gradient_step(states, model, optimizer):
    with tf.GradientTape() as tape:
        loss = compute_residuals(states, model)[0]
    grads = tape.gradient(loss, model.trainable_variables)
    grads = [tf.zeros_like(v) if g is None else g for g, v in zip(grads, model.trainable_variables)]
    if CLIP_NORM is not None:
        grads, _ = tf.clip_by_global_norm(grads, CLIP_NORM)
    optimizer.apply_gradients(zip(grads, model.trainable_variables))
    return float(loss.numpy())

def make_optimizer():
    name = OPTIMIZER_NAME.lower()
    if name == "adam":
        return keras.optimizers.Adam(
            learning_rate=LEARNING_RATE,
            beta_1=ADAM_BETA_1,
            beta_2=ADAM_BETA_2,
        )
    if name == "adamw":
        if hasattr(keras.optimizers, "AdamW"):
            return keras.optimizers.AdamW(
                learning_rate=LEARNING_RATE,
                weight_decay=WEIGHT_DECAY,
                beta_1=ADAM_BETA_1,
                beta_2=ADAM_BETA_2,
            )
        raise ValueError("AdamW is not available in this TensorFlow/Keras version. Choose Adam, RMSprop, or SGD.")
    if name == "rmsprop":
        return keras.optimizers.RMSprop(learning_rate=LEARNING_RATE, rho=RMSPROP_RHO)
    if name == "sgd":
        return keras.optimizers.SGD(learning_rate=LEARNING_RATE, momentum=SGD_MOMENTUM)
    raise ValueError(f"Unknown optimizer: {OPTIMIZER_NAME}")

print("initial loss at reference states:", compute_residuals(X_check, model_check)[0].numpy())

def sample_feasible_initial_states(n_tracks):
    """Draw feasible initial trajectory heads from a user-chosen box."""
    log_k = rng.uniform(
        np.log(INITIAL_K_LOW),
        np.log(INITIAL_K_HIGH),
        size=(n_tracks, N_COUNTRIES),
    ).astype(np.float32)
    k0 = np.exp(log_k).astype(np.float32)
    z0 = rng.uniform(INITIAL_Z_LOW, INITIAL_Z_HIGH, size=(n_tracks, N_COUNTRIES)).astype(np.float32)
    return tf.constant(np.concatenate([k0, z0], axis=1), dtype=tf.float32)

def get_training_data_exogenous(n_data):
    k = tf.random.uniform([n_data, N_COUNTRIES], EXOGENOUS_K_LOW, EXOGENOUS_K_HIGH, dtype=tf.float32)
    z = tf.random.uniform([n_data, N_COUNTRIES], EXOGENOUS_Z_LOW, EXOGENOUS_Z_HIGH, dtype=tf.float32)
    return tf.concat([k, z], axis=1)

def simulate_single_step(states, model):
    """One feasible stochastic transition for each trajectory."""
    kp, _, _, _, _ = policy(states, model)
    batch_size = tf.shape(states)[0]
    shocks = tf.random.normal([batch_size, n_shocks], dtype=tf.float32)
    z = states[:, N_COUNTRIES:]
    eps_idio = shocks[:, :N_COUNTRIES]
    eps_agg = shocks[:, N_COUNTRIES:N_COUNTRIES + 1]
    z_next = rho_z * z + sigma_e * (eps_idio + eps_agg)
    return tf.concat([kp, z_next], axis=1)

def repair_bad_states_np(x_np):
    """Replace only invalid trajectory heads by fresh feasible starts."""
    if not EMERGENCY_REPAIR_BAD_STATES:
        return x_np
    k = x_np[:, :N_COUNTRIES]
    z = x_np[:, N_COUNTRIES:]
    bad = (
        ~np.all(np.isfinite(x_np), axis=1)
        | np.any(k < SIM_REPAIR_K_MIN, axis=1)
        | np.any(k > SIM_REPAIR_K_MAX, axis=1)
        | np.any(np.abs(z) > SIM_REPAIR_ABS_Z_MAX, axis=1)
    )
    if np.any(bad):
        replacement = sample_feasible_initial_states(int(np.sum(bad))).numpy()
        x_np = x_np.copy()
        x_np[bad] = replacement
    return x_np.astype(np.float32)

def simulate_path(X_start, model, n_steps):
    """Simulate n_steps recorded states and return the terminal heads."""
    current = tf.convert_to_tensor(X_start, dtype=tf.float32)
    n_tracks = int(current.shape[0])
    path = np.empty((n_steps, n_tracks, n_states), dtype=np.float32)

    for t in range(n_steps):
        path[t] = current.numpy()
        current = simulate_single_step(current, model)
        current_np = repair_bad_states_np(current.numpy())
        current = tf.constant(current_np, dtype=tf.float32)

    X_end = current.numpy().astype(np.float32)
    return path, X_end

def get_training_data_simulation(X_start, model, n_steps):
    path, X_end = simulate_path(X_start, model, n_steps)
    X_training = path.reshape(-1, n_states).astype(np.float32)
    return tf.constant(X_training, dtype=tf.float32), tf.constant(X_end, dtype=tf.float32)

def get_training_segment(X_start, model):
    if SAMPLING_MODE == "simulation":
        return get_training_data_simulation(X_start, model, SIMULATION_LENGTH)
    if SAMPLING_MODE == "exogenous":
        X = get_training_data_exogenous(EXOGENOUS_STATES_PER_SEGMENT)
        return X, X_start
    raise ValueError("SAMPLING_MODE must be 'simulation' or 'exogenous'.")

X0_demo = sample_feasible_initial_states(N_TRAJECTORIES)
X_demo, X_end_demo = get_training_data_simulation(X0_demo, model_check, min(SIMULATION_LENGTH, 8))
kp_demo, _, _, I_demo, Ifrac_demo = policy(X_demo, model_check)
print("demo X_start shape:   ", X0_demo.shape)
print("demo training shape:  ", X_demo.shape)
print("demo X_end shape:     ", X_end_demo.shape)
print("minimum demo investment:", float(tf.reduce_min(I_demo).numpy()))
print("first three demo states:\n", X_demo[:3].numpy())

def iterate_minibatches(X, batch_size):
    X = tf.convert_to_tensor(X, dtype=tf.float32)
    n = int(X.shape[0])
    if batch_size is None or batch_size <= 0 or batch_size >= n:
        yield X
        return

    idx = np.arange(n)
    if SHUFFLE_STATES_WITHIN_SEGMENT:
        rng.shuffle(idx)
    for start in range(0, n, batch_size):
        batch_idx = idx[start:start + batch_size]
        yield tf.gather(X, batch_idx)

def train_on_segment_states(X_segment, model, optimizer):
    losses = []
    n_updates = 0
    for _ in range(PASSES_PER_SEGMENT):
        for X_batch in iterate_minibatches(X_segment, BATCH_SIZE):
            losses.append(gradient_step(X_batch, model, optimizer))
            n_updates += 1
    return float(np.mean(losses)), n_updates

def current_learning_rate(optimizer):
    lr = optimizer.learning_rate
    if callable(lr):
        lr = lr(optimizer.iterations)
    return float(tf.keras.backend.get_value(lr))

def sample_time_invariance_anchor_states(n_anchor):
    """Fixed holdout cloud for monitoring policy-function drift.

    The anchor states are not used for training.  They are used only to detect
    whether the policy function is still changing across SGD iterations.
    """
    local_rng = np.random.default_rng(SEED + 91017)
    n_exog = int(np.ceil(0.75 * n_anchor))
    n_init = n_anchor - n_exog

    log_k_exog = local_rng.uniform(np.log(EXOGENOUS_K_LOW), np.log(EXOGENOUS_K_HIGH), size=(n_exog, N_COUNTRIES))
    z_exog = local_rng.uniform(EXOGENOUS_Z_LOW, EXOGENOUS_Z_HIGH, size=(n_exog, N_COUNTRIES))
    X_exog = np.concatenate([np.exp(log_k_exog), z_exog], axis=1)

    if n_init > 0:
        log_k_init = local_rng.uniform(np.log(INITIAL_K_LOW), np.log(INITIAL_K_HIGH), size=(n_init, N_COUNTRIES))
        z_init = local_rng.uniform(INITIAL_Z_LOW, INITIAL_Z_HIGH, size=(n_init, N_COUNTRIES))
        X_init = np.concatenate([np.exp(log_k_init), z_init], axis=1)
        X = np.vstack([X_exog, X_init])
    else:
        X = X_exog

    local_rng.shuffle(X, axis=0)
    return tf.constant(X.astype(np.float32), dtype=tf.float32)

def policy_fingerprint(states, model):
    """Dimensionless representation of irreversible-model policies for drift checks."""
    kp, lamb, mu, investment, investment_fraction = policy(states, model)
    log_kp = tf.math.log(tf.maximum(kp, EPS) / K_REF)
    log_lamb = tf.math.log(tf.maximum(lamb, EPS) / LAMBDA_REF)
    mu_rel = mu / tf.maximum(lamb, EPS)
    return tf.concat([log_kp, log_lamb, mu_rel, investment_fraction], axis=1)

def relative_policy_drift(previous, current):
    previous = np.asarray(previous, dtype=np.float64)
    current = np.asarray(current, dtype=np.float64)
    diff = current - previous
    scale = 1.0 + np.sqrt(np.mean(previous ** 2))
    rms = np.sqrt(np.mean(diff ** 2)) / scale
    max_abs = np.max(np.abs(diff)) / scale
    return float(rms), float(max_abs)

model = build_network()
optimizer = make_optimizer()
X_start = sample_feasible_initial_states(N_TRAJECTORIES)

# Fixed holdout cloud for monitoring training-time policy drift.
X_anchor = sample_time_invariance_anchor_states(TIME_INVARIANCE_ANCHOR_STATES)
anchor_fingerprint_previous = policy_fingerprint(X_anchor, model).numpy()

history = {
    "segment": [],
    "loss": [],
    "mean_abs_euler": [],
    "mean_abs_arc": [],
    "mean_abs_fb": [],
    "policy_drift_rms": [],
    "policy_drift_max": [],
    "min_investment_fraction": [],
    "share_near_binding": [],
    "k_min": [],
    "k_max": [],
    "z_min": [],
    "z_max": [],
    "n_updates": [],
}

BINDING_TOL_INVESTMENT_FRACTION = 1.0e-4

for seg in range(NUM_SEGMENTS):
    # 1. Simulate or exogenously draw training states.
    X_segment, X_end = get_training_segment(X_start, model)

    # 2. Update the network on this segment.
    mean_train_loss, n_updates = train_on_segment_states(X_segment, model, optimizer)

    # 3. Continue trajectories from the terminal states of the segment.
    if SAMPLING_MODE == "simulation":
        X_start = X_end

    # 4. Monitor the updated policy.

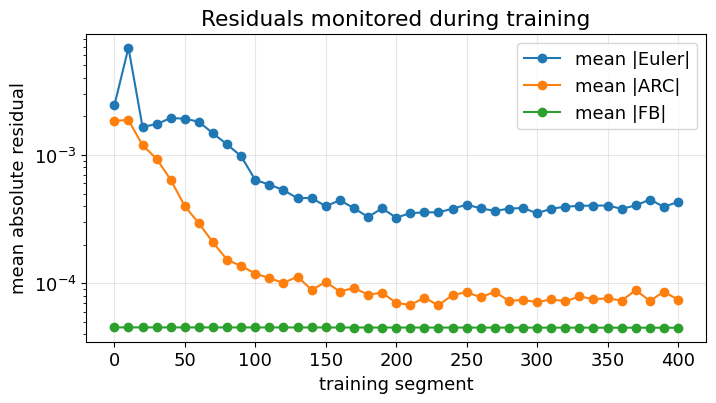

    if seg % MONITOR_EVERY == 0 or seg == NUM_SEGMENTS - 1:
        loss_now, euler_now, arc_now, fb_now, kp_now, lamb_now, mu_now, I_now, Ifrac_now, comp_now = compute_residuals(X_segment, model)
        X_np = X_segment.numpy()
        k_np = X_np[:, :N_COUNTRIES]
        z_np = X_np[:, N_COUNTRIES:]
        mean_euler = float(tf.reduce_mean(tf.abs(euler_now)).numpy())
        mean_arc = float(tf.reduce_mean(tf.abs(arc_now)).numpy())
        mean_fb = float(tf.reduce_mean(tf.abs(fb_now)).numpy())
        Ifrac_np = Ifrac_now.numpy()
        share_near_binding = float(np.mean(Ifrac_np < BINDING_TOL_INVESTMENT_FRACTION))

        anchor_fingerprint_now = policy_fingerprint(X_anchor, model).numpy()
        drift_rms, drift_max = relative_policy_drift(anchor_fingerprint_previous, anchor_fingerprint_now)
        anchor_fingerprint_previous = anchor_fingerprint_now

        history["segment"].append(seg)

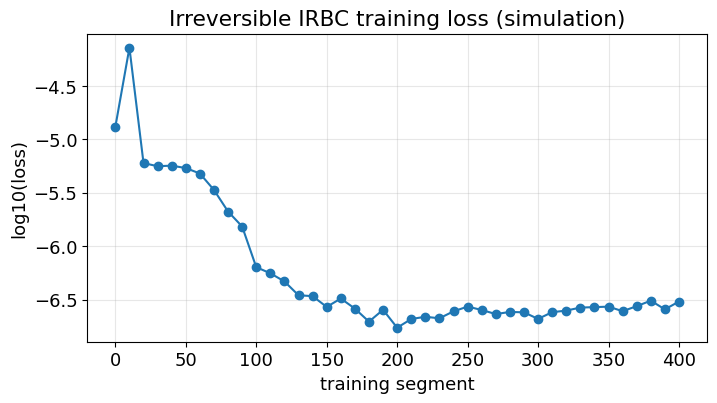

        history["loss"].append(float(loss_now.numpy()))
        history["mean_abs_euler"].append(mean_euler)
        history["mean_abs_arc"].append(mean_arc)
        history["mean_abs_fb"].append(mean_fb)
        history["policy_drift_rms"].append(drift_rms)
        history["policy_drift_max"].append(drift_max)
        history["min_investment_fraction"].append(float(Ifrac_np.min()))
        history["share_near_binding"].append(share_near_binding)
        history["k_min"].append(float(k_np.min()))
        history["k_max"].append(float(k_np.max()))
        history["z_min"].append(float(z_np.min()))
        history["z_max"].append(float(z_np.max()))
        history["n_updates"].append(n_updates)

        drift_flag = "stable" if drift_rms <= TIME_INVARIANCE_TOL_RMS else "moving"
        print(
            f"segment {seg:5d} | updates {n_updates:3d} | "
            f"lr={current_learning_rate(optimizer):.2e} | "
            f"log10(loss)={np.log10(max(float(loss_now.numpy()), 1e-30)): .4f} | "
            f"mean |Euler|={mean_euler:.3e} | mean |ARC|={mean_arc:.3e} | mean |FB|={mean_fb:.3e} | "
            f"policy drift rms={drift_rms:.3e} max={drift_max:.3e} ({drift_flag}) | "
            f"min I/k={Ifrac_np.min():.2e} | bind share={share_near_binding:.3f} | "
            f"k=[{k_np.min():.3f},{k_np.max():.3f}] | z=[{z_np.min():.3f},{z_np.max():.3f}]"
        )

def summarize_abs(x):
    x = np.asarray(x, dtype=np.float64).reshape(-1)
    return {
        "mean": float(np.mean(x)),
        "median": float(np.median(x)),
        "p95": float(np.quantile(x, 0.95)),
        "p99": float(np.quantile(x, 0.99)),
        "max": float(np.max(x)),
    }

def print_summary(name, values, percent=False):
    s = summarize_abs(values)
    if percent:
        mean_extra = f" ({100*s['mean']:.3f}%)"
    else:
        mean_extra = ""
    print(
        f"  {name:24s} "
        f"mean={s['mean']:.3e}{mean_extra} | "
        f"median={s['median']:.3e} | p95={s['p95']:.3e} | "
        f"p99={s['p99']:.3e} | max={s['max']:.3e}"
    )

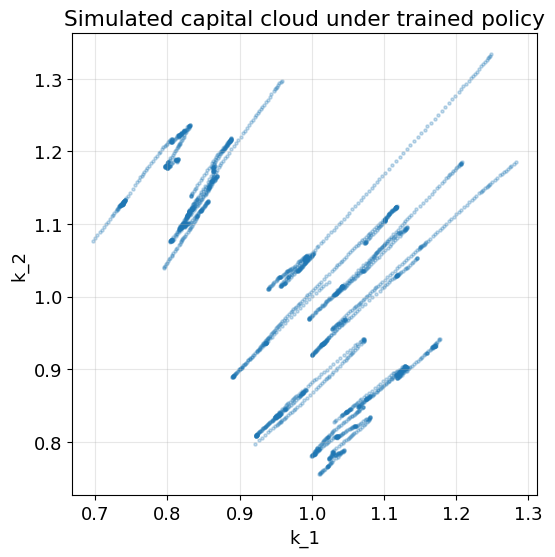

def simulated_evaluation_states(model, n_eval_tracks=64, burn_in=64, eval_length=256):
    X0 = sample_feasible_initial_states(n_eval_tracks)
    path, _ = simulate_path(X0, model, burn_in + eval_length)
    path = path[burn_in:]
    return tf.constant(path.reshape(-1, n_states), dtype=tf.float32)

def residual_report(label, X, model):
    loss, euler_res, arc_res, fb_res, kp, lamb, mu, investment, investment_fraction, comp_product = compute_residuals(X, model)
    e_abs = np.abs(euler_res.numpy())
    a_abs = np.abs(arc_res.numpy())
    f_abs = np.abs(fb_res.numpy())
    p_abs = np.abs(comp_product.numpy())
    Ifrac_np = investment_fraction.numpy()
    mu_np = mu.numpy()
    X_np = X.numpy() if isinstance(X, tf.Tensor) else np.asarray(X)

    print(f"\n{label}")
    print(f"  total loss                {float(loss.numpy()):.3e}")
    print_summary("|Euler relative|", e_abs, percent=True)
    print_summary("|ARC relative|", a_abs, percent=True)
    print_summary("|FB normalized|", f_abs, percent=False)
    print_summary("|mu*I normalized|", p_abs, percent=False)
    print(f"  log10 mean |Euler|        {np.log10(max(e_abs.mean(), 1e-30)): .3f}")
    print(f"  log10 mean |ARC|          {np.log10(max(a_abs.mean(), 1e-30)): .3f}")
    print(f"  log10 mean |FB|           {np.log10(max(f_abs.mean(), 1e-30)): .3f}")
    print(f"  min investment fraction   {Ifrac_np.min():.3e}")
    print(f"  share near binding        {np.mean(Ifrac_np < BINDING_TOL_INVESTMENT_FRACTION):.3f}  (I/k < {BINDING_TOL_INVESTMENT_FRACTION:g})")
    print(f"  mean KKT multiplier mu    {mu_np.mean():.3e}")
    print(f"  capital in states         [{X_np[:, :N_COUNTRIES].min():.3f}, {X_np[:, :N_COUNTRIES].max():.3f}]")

N_EVAL_EXOGENOUS = 8192 if RUN_MODE != "smoke" else 1024
N_EVAL_TRACKS = 64 if RUN_MODE != "smoke" else 8
EVAL_BURN_IN = 64 if RUN_MODE != "smoke" else 8
EVAL_LENGTH = 256 if RUN_MODE != "smoke" else 32

X_eval_exog = get_training_data_exogenous(N_EVAL_EXOGENOUS)
X_eval_sim = simulated_evaluation_states(model, N_EVAL_TRACKS, EVAL_BURN_IN, EVAL_LENGTH)

residual_report("Out-of-sample exogenous states", X_eval_exog, model)
residual_report("Out-of-sample simulated states", X_eval_sim, model)

def final_time_invariance_report():
    print("\nTime-invariance / policy-stability diagnostic")
    fp_1 = policy_fingerprint(X_anchor, model).numpy()
    fp_2 = policy_fingerprint(X_anchor, model).numpy()
    same_state_max = float(np.max(np.abs(fp_2 - fp_1)))
    print(f"  same-state repeatability, max abs difference = {same_state_max:.3e}")

    if len(history["policy_drift_rms"]) == 0:
        print("  no policy-drift history was recorded; increase NUM_SEGMENTS or lower MONITOR_EVERY")
        return

    last_rms = history["policy_drift_rms"][-1]
    last_max = history["policy_drift_max"][-1]
    print(f"  last monitor-to-monitor policy drift, rms = {last_rms:.3e}")
    print(f"  last monitor-to-monitor policy drift, max = {last_max:.3e}")
    print(f"  drift tolerances: rms <= {TIME_INVARIANCE_TOL_RMS:g}, max <= {TIME_INVARIANCE_TOL_MAX:g}")
    if last_rms <= TIME_INVARIANCE_TOL_RMS and last_max <= TIME_INVARIANCE_TOL_MAX:
        print("  PASS: policy drift is small on the fixed holdout cloud.")
    else:
        print("  WARNING: policy is still moving on the fixed holdout cloud. Train longer, reduce the learning rate, or increase the segment budget.")

def sample_zero_shock_start_states(n_tracks):
    local_rng = np.random.default_rng(SEED + 51031)
    log_k = local_rng.uniform(np.log(INITIAL_K_LOW), np.log(INITIAL_K_HIGH), size=(n_tracks, N_COUNTRIES))
    z0 = local_rng.uniform(INITIAL_Z_LOW, INITIAL_Z_HIGH, size=(n_tracks, N_COUNTRIES))
    return tf.constant(np.concatenate([np.exp(log_k), z0], axis=1).astype(np.float32), dtype=tf.float32)

def simulate_single_step_zero_shock(states, model):
    """One deterministic transition under the stochastic policy with realized shocks set to zero."""
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    kp, _, _, _, _ = policy(states, model)
    z = states[:, N_COUNTRIES:]
    z_next = rho_z * z
    return tf.concat([kp, z_next], axis=1)

def scaled_transition_distance(x, x_next):
    x = np.asarray(x, dtype=np.float64)
    x_next = np.asarray(x_next, dtype=np.float64)
    k = np.maximum(x[:, :N_COUNTRIES], EPS)
    kp = np.maximum(x_next[:, :N_COUNTRIES], EPS)
    z = x[:, N_COUNTRIES:]
    z_next = x_next[:, N_COUNTRIES:]
    d_k = np.max(np.abs(np.log(kp / k)))
    d_z = np.max(np.abs(z_next - z)) / max(INPUT_Z_SCALE, EPS)
    return float(max(d_k, d_z))

def compute_zero_shock_stochastic_steady_state(model):
    X = sample_zero_shock_start_states(ZERO_SHOCK_N_STARTS)
    distances = []
    converged = False

    for step in range(1, ZERO_SHOCK_MAX_STEPS + 1):
        X_next = simulate_single_step_zero_shock(X, model)
        X_np = X.numpy()
        X_next_np = X_next.numpy()
        if not np.all(np.isfinite(X_next_np)):
            print(f"  zero-shock iteration stopped at step {step}: non-finite state encountered")
            break
        dist = scaled_transition_distance(X_np, X_next_np)
        distances.append(dist)
        X = tf.constant(X_next_np.astype(np.float32), dtype=tf.float32)
        if dist <= ZERO_SHOCK_TOL:
            converged = True
            break

    return X, np.asarray(distances), step, converged

def pass_fail(condition):
    return "PASS" if bool(condition) else "FAIL"

def zero_shock_stochastic_steady_state_report(model):
    if not RUN_ZERO_SHOCK_STEADY_STATE_CHECK:
        print("\nZero-shock stochastic steady-state diagnostic skipped.")
        return None

    print("\nZero-shock stochastic steady-state diagnostic")
    X_ss, distances, n_steps, converged = compute_zero_shock_stochastic_steady_state(model)
    X_np = X_ss.numpy()
    k = X_np[:, :N_COUNTRIES]
    z = X_np[:, N_COUNTRIES:]

    loss, euler_res, arc_res, fb_res, kp, lamb, mu, investment, investment_fraction, comp_product = compute_residuals(X_ss, model)
    kp_np = kp.numpy()
    lamb_np = lamb.numpy()
    mu_np = mu.numpy()
    I_np = investment.numpy()
    Ifrac_np = investment_fraction.numpy()
    e_abs = np.abs(euler_res.numpy())
    a_abs = np.abs(arc_res.numpy())
    fb_abs = np.abs(fb_res.numpy())
    comp_abs = np.abs(comp_product.numpy())

    capital_fixed_error = float(np.max(np.abs(kp_np - k) / np.maximum(k, EPS)))
    max_abs_z = float(np.max(np.abs(z)))
    log_k_spread = float(np.max(np.std(np.log(np.maximum(k, EPS)), axis=0)))
    mean_k = k.mean(axis=0)
    rel_to_det = mean_k / K_REF - 1.0
    Ifrac_delta_error = float(np.max(np.abs(Ifrac_np - delta)))
    mu_rel = mu_np / np.maximum(lamb_np, EPS)

    print(f"  zero-shock iteration steps       {n_steps}")
    print(f"  converged                       {converged}")
    if len(distances) > 0:
        print(f"  final scaled transition dist    {distances[-1]:.3e}")
    print(f"  deterministic reference k       {K_REF:.6f}")
    print(f"  mean stochastic steady-state k  {mean_k}")
    print(f"  relative k deviation from ref   {rel_to_det}")
    print(f"  max |k'(s_ss)-k_ss|/k_ss        {capital_fixed_error:.3e}")
    print(f"  max |z_ss|                      {max_abs_z:.3e}")
    print(f"  max cross-start std(log k)      {log_k_spread:.3e}")
    print(f"  min investment fraction I/k     {Ifrac_np.min():.3e}")
    print(f"  max |I/k - delta|               {Ifrac_delta_error:.3e}")
    print(f"  mean relative KKT mu/lambda     {mu_rel.mean():.3e}")
    print(f"  mean |Euler| at s_ss            {e_abs.mean():.3e}")
    print(f"  mean |ARC| at s_ss              {a_abs.mean():.3e}")
    print(f"  mean |FB| at s_ss               {fb_abs.mean():.3e}")
    print(f"  mean |mu*I| normalized at s_ss  {comp_abs.mean():.3e}")

    checks = [
        ("finite state and policy", np.all(np.isfinite(X_np)) and np.all(np.isfinite(kp_np)) and np.all(np.isfinite(I_np))),
        ("positive capital", np.min(k) > 0.0),
        ("zero-shock iteration converged", converged),
        ("capital fixed point", capital_fixed_error <= ZERO_SHOCK_FIXED_POINT_TOL),
        ("productivity fixed point z approximately 0", max_abs_z <= ZERO_SHOCK_Z_TOL),
        ("starts converge to common point", log_k_spread <= ZERO_SHOCK_CROSS_TRACK_TOL),
        ("capital in broad economic range", np.min(k) >= SSS_K_MIN_OK * K_REF and np.max(k) <= SSS_K_MAX_OK * K_REF),
        ("investment equals depreciation at fixed point", Ifrac_delta_error <= ZERO_SHOCK_FIXED_POINT_TOL),
        ("irreversibility not binding at steady state", np.min(Ifrac_np) > max(BINDING_TOL_INVESTMENT_FRACTION, 0.25 * delta)),
        ("KKT multiplier near zero when nonbinding", np.mean(mu_rel) <= SSS_MEAN_RESIDUAL_TOL),
        ("Euler residual small at s_ss", e_abs.mean() <= SSS_MEAN_RESIDUAL_TOL),
        ("resource residual small at s_ss", a_abs.mean() <= SSS_MEAN_RESIDUAL_TOL),
        ("complementarity residual small at s_ss", fb_abs.mean() <= SSS_MEAN_RESIDUAL_TOL),
    ]

    print("\n  Economic sanity checks")
    for label, ok in checks:
        print(f"    {pass_fail(ok):4s}  {label}")

    return {
        "X_ss": X_ss,
        "distances": distances,
        "converged": converged,
        "mean_k": mean_k,
        "relative_to_deterministic_k": rel_to_det,
        "capital_fixed_error": capital_fixed_error,
        "max_abs_z": max_abs_z,
        "investment_fraction_delta_error": Ifrac_delta_error,
        "mean_mu_rel": float(np.mean(mu_rel)),
        "mean_abs_euler": float(e_abs.mean()),
        "mean_abs_arc": float(a_abs.mean()),
        "mean_abs_fb": float(fb_abs.mean()),
    }

final_time_invariance_report()
zero_shock_result = zero_shock_stochastic_steady_state_report(model)

if len(history.get("policy_drift_rms", [])) > 0:
    plt.figure(figsize=(8, 4))
    plt.plot(history["segment"], history["policy_drift_rms"], marker="o", label="RMS drift")
    plt.plot(history["segment"], history["policy_drift_max"], marker="o", label="max drift")
    plt.axhline(TIME_INVARIANCE_TOL_RMS, linestyle="--", label="RMS tolerance")
    plt.yscale("log")
    plt.xlabel("training segment")
    plt.ylabel("relative policy drift")
    plt.title("Policy-function drift on fixed holdout states")
    plt.legend()
    plt.grid(True, alpha=0.3)
    plt.show()

if isinstance(globals().get("zero_shock_result"), dict) and len(zero_shock_result["distances"]) > 0:
    plt.figure(figsize=(8, 4))
    plt.plot(np.arange(1, len(zero_shock_result["distances"]) + 1), zero_shock_result["distances"])
    plt.yscale("log")
    plt.xlabel("zero-shock iteration step")
    plt.ylabel("scaled transition distance")
    plt.title("Convergence to the zero-shock stochastic steady state")
    plt.grid(True, alpha=0.3)
    plt.show()

plt.figure(figsize=(8, 4))
plt.plot(history["segment"], np.log10(np.maximum(history["loss"], 1e-30)), marker="o")
plt.xlabel("training segment")
plt.ylabel("log10(loss)")
plt.title(f"Irreversible IRBC training loss ({SAMPLING_MODE})")
plt.grid(True, alpha=0.3)
plt.show()

plt.figure(figsize=(8, 4))
plt.plot(history["segment"], history["mean_abs_euler"], marker="o", label="mean |Euler|")
plt.plot(history["segment"], history["mean_abs_arc"], marker="o", label="mean |ARC|")
plt.plot(history["segment"], history["mean_abs_fb"], marker="o", label="mean |FB|")
plt.yscale("log")
plt.xlabel("training segment")
plt.ylabel("mean absolute residual")
plt.title("Residuals monitored during training")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

X_cloud = simulated_evaluation_states(model, n_eval_tracks=10, burn_in=32, eval_length=256)
X_cloud_np = X_cloud.numpy()
kp_cloud, lambda_cloud, mu_cloud, I_cloud, Ifrac_cloud = policy(X_cloud, model)

if N_COUNTRIES >= 2:
    plt.figure(figsize=(6, 6))
    plt.scatter(X_cloud_np[:, 0], X_cloud_np[:, 1], s=5, alpha=0.25)
    plt.xlabel("k_1")
    plt.ylabel("k_2")
    plt.title("Simulated capital cloud under trained policy")
    plt.grid(True, alpha=0.3)
    plt.show()

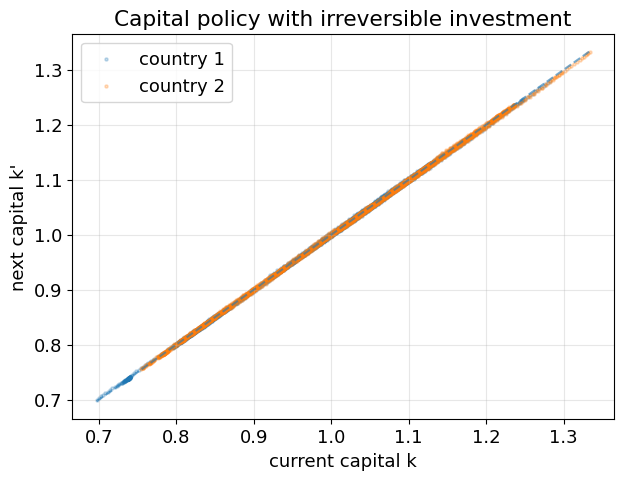

plt.figure(figsize=(7, 5))
for j in range(N_COUNTRIES):
    plt.scatter(X_cloud_np[:, j], kp_cloud.numpy()[:, j], s=5, alpha=0.25, label=f"country {j+1}")
lo = min(X_cloud_np[:, :N_COUNTRIES].min(), kp_cloud.numpy().min())
hi = max(X_cloud_np[:, :N_COUNTRIES].max(), kp_cloud.numpy().max())
plt.plot([lo, hi], [lo, hi], "--", alpha=0.6)
plt.xlabel("current capital k")
plt.ylabel("next capital k'")
plt.title("Capital policy with irreversible investment")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

plt.figure(figsize=(7, 5))
for j in range(N_COUNTRIES):
    plt.scatter(Ifrac_cloud.numpy()[:, j], mu_cloud.numpy()[:, j] / lambda_cloud.numpy()[:, 0], s=5, alpha=0.25, label=f"country {j+1}")
plt.xlabel("investment fraction I/k")
plt.ylabel("relative KKT multiplier mu/lambda")
plt.title("Complementarity diagnostic")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()
