Lecture 02, Notebook 05: TensorBoard Instrumentation - Deep Learning for Solving and Estimating Dynamic Models in Economics and Finance

Course: Deep Learning for Solving and Estimating Dynamic Models in Economics and Finance
Script reference: §1.5–1.8 (Training and regularization: TensorBoard instrumentation)
Notebook role: extension
Author: Simon Scheidegger

RUN_MODE = "smoke"  # one of: "smoke", "teaching", "production"
SEED = 0

Monitoring training with TensorBoard¶

TensorBoard is TensorFlow’s interactive dashboard for inspecting training dynamics: scalar metrics (loss, MAE), weight and gradient histograms, the computational graph, and embeddings.

In this notebook we:

Generate a synthetic 2-D regression problem $f(x,y) = \sin(x)\,e^{y}$ .
Train a small Keras MLP and stream training metrics into a ./logs directory via the TensorBoard callback.
Save model checkpoints with ModelCheckpoint.
Inspect the logs both inline (with the %tensorboard magic) and from the command line (tensorboard --logdir=./logs).

Why care? Out-of-the-box model.fit only prints scalar summaries to stdout; TensorBoard lets you watch losses, parameter histograms, and even embeddings evolve epoch by epoch. This is essential for debugging deep-learning training for economic models (Day 2 onward), where loss curves are the primary signal that the network is converging to a sensible policy.

import os, datetime, shutil
import numpy as np
import matplotlib.pyplot as plt
import tensorflow as tf
from tensorflow.keras import Sequential
from tensorflow.keras.layers import Dense, Input
from tensorflow.keras.callbacks import ModelCheckpoint, TensorBoard
from sklearn.model_selection import train_test_split

%matplotlib inline

np.random.seed(SEED)
tf.random.set_seed(SEED)

print(f'TensorFlow {tf.__version__}')

2026-04-19 19:56:40.566541: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1776621400.587139  138204 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1776621400.592739  138204 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2026-04-19 19:56:40.610413: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.

TensorFlow 2.18.0

1. Synthetic data¶

$f(x, y) = \sin(x)\,e^{y}$ on $[-2, 2]^2$ .

def generate_data(n):
    x = np.random.uniform(-2, 2, n)
    y = np.random.uniform(-2, 2, n)
    z = np.sin(x) * np.exp(y)
    return np.vstack((x, y)).T.astype(np.float32), z.astype(np.float32)

X, z = generate_data(10_000)
X_tr, X_te, z_tr, z_te = train_test_split(X, z, test_size=0.2, random_state=42)
print(f'Train: {X_tr.shape}, test: {X_te.shape}')

Train: (8000, 2), test: (2000, 2)

2. Model and callbacks¶

Two-hidden-layer ReLU MLP; Adam optimiser; MSE loss.

We attach two callbacks:

ModelCheckpoint — saves weights every epoch under ./checkpoints/.
TensorBoard — writes scalar/histogram summaries under ./logs/<timestamp>/.

model = Sequential([
    Input(shape=(2,)),
    Dense(128, activation='relu'),
    Dense(128, activation='relu'),
    Dense(1),
])
model.compile(optimizer='adam', loss='mse', metrics=['mae'])
model.summary()

2026-04-19 19:56:43.490802: E external/local_xla/xla/stream_executor/cuda/cuda_driver.cc:152] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)

# Fresh log + checkpoint directories so re-runs do not collide.
ckpt_dir = './checkpoints'
log_dir  = os.path.join('logs', datetime.datetime.now().strftime('%Y%m%d-%H%M%S'))
shutil.rmtree(ckpt_dir, ignore_errors=True)
os.makedirs(ckpt_dir, exist_ok=True)
os.makedirs(log_dir, exist_ok=True)

ckpt_cb = ModelCheckpoint(
    filepath=os.path.join(ckpt_dir, 'epoch_{epoch:02d}.weights.h5'),
    save_weights_only=True,
    verbose=0,
)
tb_cb = TensorBoard(log_dir=log_dir, histogram_freq=1)

print(f'TensorBoard log dir: {log_dir}')
print(f'Checkpoint dir:    {ckpt_dir}')

TensorBoard log dir: logs/20260419-195643
Checkpoint dir:    ./checkpoints

3. Training¶

50 epochs, batch size 128. The callbacks fire automatically each epoch.

history = model.fit(
    X_tr, z_tr,
    validation_data=(X_te, z_te),
    epochs=50, batch_size=128,
    callbacks=[ckpt_cb, tb_cb],
    verbose=2,
)

test_loss, test_mae = model.evaluate(X_te, z_te, verbose=0)
print(f'\nTest MSE = {test_loss:.4e}, MAE = {test_mae:.4e}')

Epoch 1/50

63/63 - 1s - 22ms/step - loss: 1.3788 - mae: 0.6591 - val_loss: 0.2860 - val_mae: 0.3570

Epoch 2/50

63/63 - 0s - 4ms/step - loss: 0.1612 - mae: 0.2463 - val_loss: 0.1063 - val_mae: 0.2007

Epoch 3/50

63/63 - 0s - 4ms/step - loss: 0.0781 - mae: 0.1699 - val_loss: 0.0594 - val_mae: 0.1473

Epoch 4/50

63/63 - 0s - 4ms/step - loss: 0.0432 - mae: 0.1291 - val_loss: 0.0332 - val_mae: 0.1117

Epoch 5/50

63/63 - 0s - 4ms/step - loss: 0.0252 - mae: 0.1019 - val_loss: 0.0208 - val_mae: 0.0885

Epoch 6/50

63/63 - 0s - 5ms/step - loss: 0.0166 - mae: 0.0842 - val_loss: 0.0146 - val_mae: 0.0773

Epoch 7/50

63/63 - 1s - 9ms/step - loss: 0.0117 - mae: 0.0702 - val_loss: 0.0112 - val_mae: 0.0686

Epoch 8/50

63/63 - 0s - 4ms/step - loss: 0.0088 - mae: 0.0599 - val_loss: 0.0088 - val_mae: 0.0609

Epoch 9/50

63/63 - 0s - 4ms/step - loss: 0.0068 - mae: 0.0522 - val_loss: 0.0071 - val_mae: 0.0550

Epoch 10/50

63/63 - 0s - 4ms/step - loss: 0.0054 - mae: 0.0455 - val_loss: 0.0061 - val_mae: 0.0525

Epoch 11/50

63/63 - 0s - 4ms/step - loss: 0.0045 - mae: 0.0411 - val_loss: 0.0053 - val_mae: 0.0491

Epoch 12/50

63/63 - 0s - 5ms/step - loss: 0.0038 - mae: 0.0384 - val_loss: 0.0048 - val_mae: 0.0464

Epoch 13/50

63/63 - 0s - 4ms/step - loss: 0.0033 - mae: 0.0362 - val_loss: 0.0042 - val_mae: 0.0430

Epoch 14/50

63/63 - 0s - 4ms/step - loss: 0.0028 - mae: 0.0334 - val_loss: 0.0036 - val_mae: 0.0406

Epoch 15/50

63/63 - 0s - 4ms/step - loss: 0.0024 - mae: 0.0313 - val_loss: 0.0031 - val_mae: 0.0389

Epoch 16/50

63/63 - 0s - 5ms/step - loss: 0.0022 - mae: 0.0304 - val_loss: 0.0027 - val_mae: 0.0384

Epoch 17/50

63/63 - 0s - 4ms/step - loss: 0.0021 - mae: 0.0299 - val_loss: 0.0024 - val_mae: 0.0377

Epoch 18/50

63/63 - 0s - 4ms/step - loss: 0.0019 - mae: 0.0288 - val_loss: 0.0022 - val_mae: 0.0364

Epoch 19/50

63/63 - 0s - 5ms/step - loss: 0.0017 - mae: 0.0273 - val_loss: 0.0019 - val_mae: 0.0338

Epoch 20/50

63/63 - 0s - 4ms/step - loss: 0.0015 - mae: 0.0257 - val_loss: 0.0018 - val_mae: 0.0331

Epoch 21/50

63/63 - 0s - 4ms/step - loss: 0.0013 - mae: 0.0244 - val_loss: 0.0018 - val_mae: 0.0334

Epoch 22/50

63/63 - 0s - 4ms/step - loss: 0.0012 - mae: 0.0234 - val_loss: 0.0018 - val_mae: 0.0345

Epoch 23/50

63/63 - 0s - 4ms/step - loss: 0.0011 - mae: 0.0224 - val_loss: 0.0019 - val_mae: 0.0353

Epoch 24/50

63/63 - 0s - 4ms/step - loss: 9.9862e-04 - mae: 0.0214 - val_loss: 0.0018 - val_mae: 0.0351

Epoch 25/50

63/63 - 0s - 4ms/step - loss: 9.0592e-04 - mae: 0.0203 - val_loss: 0.0017 - val_mae: 0.0346

Epoch 26/50

63/63 - 0s - 4ms/step - loss: 8.1929e-04 - mae: 0.0193 - val_loss: 0.0017 - val_mae: 0.0350

Epoch 27/50

63/63 - 0s - 4ms/step - loss: 7.5364e-04 - mae: 0.0184 - val_loss: 0.0017 - val_mae: 0.0351

Epoch 28/50

63/63 - 0s - 4ms/step - loss: 6.9287e-04 - mae: 0.0176 - val_loss: 0.0015 - val_mae: 0.0325

Epoch 29/50

63/63 - 0s - 4ms/step - loss: 6.3489e-04 - mae: 0.0167 - val_loss: 0.0012 - val_mae: 0.0293

Epoch 30/50

63/63 - 0s - 5ms/step - loss: 5.8405e-04 - mae: 0.0160 - val_loss: 0.0011 - val_mae: 0.0261

Epoch 31/50

63/63 - 0s - 4ms/step - loss: 5.3829e-04 - mae: 0.0153 - val_loss: 9.1121e-04 - val_mae: 0.0235

Epoch 32/50

63/63 - 0s - 4ms/step - loss: 5.0640e-04 - mae: 0.0148 - val_loss: 8.2765e-04 - val_mae: 0.0217

Epoch 33/50

63/63 - 0s - 4ms/step - loss: 4.8442e-04 - mae: 0.0146 - val_loss: 8.8536e-04 - val_mae: 0.0231

Epoch 34/50

63/63 - 0s - 4ms/step - loss: 4.7775e-04 - mae: 0.0146 - val_loss: 0.0010 - val_mae: 0.0265

Epoch 35/50

63/63 - 0s - 4ms/step - loss: 4.7626e-04 - mae: 0.0146 - val_loss: 0.0012 - val_mae: 0.0286

Epoch 36/50

63/63 - 0s - 4ms/step - loss: 4.7209e-04 - mae: 0.0145 - val_loss: 0.0012 - val_mae: 0.0290

Epoch 37/50

63/63 - 0s - 4ms/step - loss: 4.6236e-04 - mae: 0.0144 - val_loss: 0.0011 - val_mae: 0.0278

Epoch 38/50

63/63 - 0s - 4ms/step - loss: 4.4593e-04 - mae: 0.0142 - val_loss: 0.0010 - val_mae: 0.0263

Epoch 39/50

63/63 - 0s - 4ms/step - loss: 4.3352e-04 - mae: 0.0142 - val_loss: 9.7973e-04 - val_mae: 0.0256

Epoch 40/50

63/63 - 0s - 5ms/step - loss: 4.3245e-04 - mae: 0.0143 - val_loss: 9.3986e-04 - val_mae: 0.0249

Epoch 41/50

63/63 - 0s - 4ms/step - loss: 4.2289e-04 - mae: 0.0142 - val_loss: 9.3984e-04 - val_mae: 0.0248

Epoch 42/50

63/63 - 0s - 4ms/step - loss: 4.2059e-04 - mae: 0.0143 - val_loss: 9.4197e-04 - val_mae: 0.0248

Epoch 43/50

63/63 - 0s - 4ms/step - loss: 4.1355e-04 - mae: 0.0143 - val_loss: 9.7213e-04 - val_mae: 0.0249

Epoch 44/50

63/63 - 0s - 4ms/step - loss: 4.1023e-04 - mae: 0.0144 - val_loss: 9.7569e-04 - val_mae: 0.0245

Epoch 45/50

63/63 - 0s - 4ms/step - loss: 3.9893e-04 - mae: 0.0142 - val_loss: 0.0010 - val_mae: 0.0246

Epoch 46/50

63/63 - 0s - 4ms/step - loss: 3.9605e-04 - mae: 0.0142 - val_loss: 9.7829e-04 - val_mae: 0.0235

Epoch 47/50

63/63 - 0s - 4ms/step - loss: 3.7400e-04 - mae: 0.0139 - val_loss: 9.4228e-04 - val_mae: 0.0227

Epoch 48/50

63/63 - 0s - 4ms/step - loss: 3.5374e-04 - mae: 0.0135 - val_loss: 8.6306e-04 - val_mae: 0.0213

Epoch 49/50

63/63 - 0s - 4ms/step - loss: 3.3017e-04 - mae: 0.0130 - val_loss: 7.9062e-04 - val_mae: 0.0200

Epoch 50/50

63/63 - 0s - 4ms/step - loss: 3.0907e-04 - mae: 0.0125 - val_loss: 6.3947e-04 - val_mae: 0.0176


Test MSE = 6.3947e-04, MAE = 1.7582e-02

4. Inspecting the logs¶

4a. Inline (Jupyter magic)¶

Inside a notebook you can launch TensorBoard directly with the %tensorboard magic. The cell below loads the extension and embeds the dashboard.

On Nuvolos the magic is the recommended path because it serves the dashboard inside the notebook iframe — no extra port forwarding needed.

# Load the TensorBoard notebook extension and start the dashboard.
# (If %tensorboard is not displayed inline on your platform, use the CLI
# instructions in the next markdown cell.)
%load_ext tensorboard
# Uncomment the next line to launch TensorBoard inline:
# %tensorboard --logdir logs
print('TensorBoard extension loaded. Run %tensorboard --logdir logs to view.')

TensorBoard extension loaded. Run %tensorboard --logdir logs to view.

4b. From the command line¶

From a terminal in the same directory:

tensorboard --logdir=./logs --port 6006

Then open http://localhost:6006 in a browser. Tabs to look at:

Scalars: epoch_loss, epoch_mae, plus the validation versions. The two curves should track each other; a wide gap signals over-fitting.
Histograms: distribution of weights and biases per layer, per epoch. Watch for distributions that collapse to zero (dead neurons) or explode.
Graphs: the static computational graph TensorFlow built for the model.

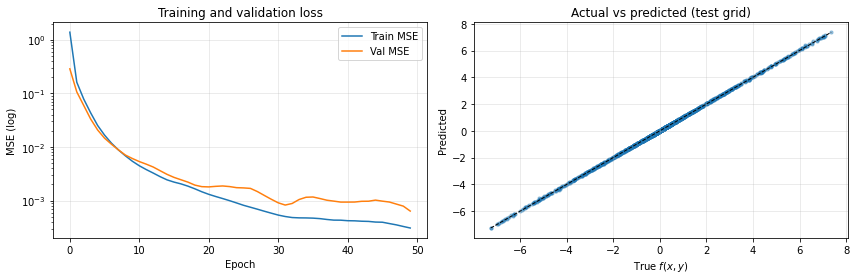

5. Sanity-check plots (no TensorBoard required)¶

Even without the dashboard, the History object returned by fit contains the same per-epoch metrics. We use it to plot the loss curve and an actual-vs-predicted scatter.

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

axes[0].semilogy(history.history['loss'],     label='Train MSE')
axes[0].semilogy(history.history['val_loss'], label='Val MSE')
axes[0].set_xlabel('Epoch')
axes[0].set_ylabel('MSE (log)')
axes[0].set_title('Training and validation loss')
axes[0].legend()
axes[0].grid(True, alpha=0.3)

X_new, z_new = generate_data(2000)
z_pred = model.predict(X_new, verbose=0).flatten()
axes[1].scatter(z_new, z_pred, alpha=0.4, s=10)
lo, hi = z_new.min(), z_new.max()
axes[1].plot([lo, hi], [lo, hi], 'k--', lw=1)
axes[1].set_xlabel('True $f(x,y)$')
axes[1].set_ylabel('Predicted')
axes[1].set_title('Actual vs predicted (test grid)')
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Recap¶

Two callbacks are enough to instrument any Keras training loop with TensorBoard logging and per-epoch checkpoints.
The dashboard becomes invaluable in Day 2+ where we train neural networks to solve dynamic stochastic models — there, watching the loss components (Euler residuals, market clearing) live is the only way to catch a stuck training run early.
