Lecture 08, Notebook 07: Analytic 6-Agent OLG — DEQN (Exogenous Sampling)

RUN_MODE = "smoke"  # one of: "smoke", "teaching", "production"
SEED = 0

SAMPLING_MODE = "exogenous"

# ============================================================
# Imports, random seeds, and main switches
# ============================================================
import math
import time

import numpy as np
import pandas as pd
import tensorflow as tf
from tensorflow import keras
import matplotlib.pyplot as plt
from IPython.display import display

plt.rcParams["font.size"] = 12

np.random.seed(SEED)
tf.random.set_seed(SEED)
rng = np.random.default_rng(SEED)

# ------------------------------------------------------------
# Training-budget switch
# ------------------------------------------------------------
# smoke      : quick code check
# teaching   : classroom/laptop run
# production : paper-style scale; intended for GPU/HPC runs
MODE = RUN_MODE                   # mirrors the run-mode switch in the second cell

if MODE == "smoke":
    NUM_SEGMENTS = 25
    N_TRAJECTORIES = 16
    SIMULATION_LENGTH = 16
    PASSES_PER_SEGMENT = 1
    MONITOR_EVERY = 5
    EVAL_TRACKS = 16
    EVAL_BURN_IN = 16
    EVAL_LENGTH = 32
    HIDDEN_UNITS_1 = 64
    HIDDEN_UNITS_2 = 32
    TRAINING_SCHEDULE = [
        dict(until=NUM_SEGMENTS, learning_rate=3e-4, batch_size=128),
    ]
elif MODE == "teaching":
    NUM_SEGMENTS = 501
    N_TRAJECTORIES = 32
    SIMULATION_LENGTH = 32
    PASSES_PER_SEGMENT = 2
    MONITOR_EVERY = 10
    EVAL_TRACKS = 32
    EVAL_BURN_IN = 64
    EVAL_LENGTH = 128
    HIDDEN_UNITS_1 = 100
    HIDDEN_UNITS_2 = 50
    TRAINING_SCHEDULE = [
        dict(until=NUM_SEGMENTS, learning_rate=1e-4, batch_size=512),
    ]
elif MODE == "production":
    # Appendix A.8 of the DEQN paper uses two hidden layers with 100 and 50
    # ReLU units, 12,800 states per episode, 20 epochs per episode, and a
    # long training run.  This preset keeps that scale.
    NUM_SEGMENTS = 10_000
    N_TRAJECTORIES = 100
    SIMULATION_LENGTH = 128
    PASSES_PER_SEGMENT = 20
    MONITOR_EVERY = 100
    EVAL_TRACKS = 128
    EVAL_BURN_IN = 256
    EVAL_LENGTH = 256
    HIDDEN_UNITS_1 = 100
    HIDDEN_UNITS_2 = 50
    TRAINING_SCHEDULE = [
        dict(until=NUM_SEGMENTS, learning_rate=1e-5, batch_size=640),
    ]
else:
    raise ValueError(f"Unknown MODE: {MODE}")

STATES_PER_SEGMENT = N_TRAJECTORIES * SIMULATION_LENGTH
SHUFFLE_STATES_WITHIN_SEGMENT = True
OPTIMIZER_NAME = "Adam"
CLIP_NORM = 10.0

# Relative Euler residuals are dimensionless consumption wedges.  The penalty
# terms should remain inactive after the first few training iterations.
EULER_WEIGHT = 1.0
PENALTY_WEIGHT = 10.0

# Monitoring on a fixed holdout cloud, as in the IRBC notebook.  The network has
# no calendar-time input, so same-state repeatability is exact; the useful check
# is whether the learned function is still moving across SGD updates.
TIME_INVARIANCE_ANCHOR_STATES = 256 if MODE == "smoke" else 2048
TIME_INVARIANCE_TOL_RMS = 1.0e-3
TIME_INVARIANCE_TOL_MAX = 1.0e-2

print(f"TensorFlow version: {tf.__version__}")
print(f"SAMPLING_MODE = {SAMPLING_MODE}")
print(f"MODE = {MODE}")
print(f"states per segment = {STATES_PER_SEGMENT}")
print(f"hidden units = ({HIDDEN_UNITS_1}, {HIDDEN_UNITS_2})")

# ============================================================
# Analytic OLG parameters
# ============================================================
N_AGES = 6
NUM_SHOCKS = 4
AGES = np.arange(1, N_AGES + 1)

# Preferences and technology.  The closed-form benchmark requires log utility.
BETA = 0.70
GAMMA = 1.0
ALPHA = 0.30

# Aggregate shocks: order is
#   0 = low TFP, low depreciation
#   1 = high TFP, low depreciation
#   2 = low TFP, high depreciation
#   3 = high TFP, high depreciation
TFP = np.array([0.95, 1.05, 0.95, 1.05], dtype=np.float32)
DEPR = np.array([0.50, 0.50, 0.90, 0.90], dtype=np.float32)
PI = np.ones((NUM_SHOCKS, NUM_SHOCKS), dtype=np.float32) / NUM_SHOCKS
PI_CUM = np.cumsum(PI, axis=1)

# Labor endowment: only the newborn cohort supplies labor.  Aggregate labor is 1.
LABOR = np.zeros(N_AGES, dtype=np.float32)
LABOR[0] = 1.0
L_TOTAL = float(np.sum(LABOR))

# Closed-form savings rates.  These are used only for diagnostics, never in the
# training loss or in the construction of simulated training states.
BETA_VEC = BETA * (1.0 - BETA ** (N_AGES - 1 - np.arange(N_AGES - 1))) / (
    1.0 - BETA ** (N_AGES - np.arange(N_AGES - 1))
)

# Tensor constants
TFP_TF = tf.constant(TFP.reshape(NUM_SHOCKS, 1), dtype=tf.float32)
DEPR_TF = tf.constant(DEPR.reshape(NUM_SHOCKS, 1), dtype=tf.float32)
PI_TF = tf.constant(PI, dtype=tf.float32)
LABOR_TF = tf.constant(LABOR.reshape(1, N_AGES), dtype=tf.float32)
L_TOTAL_TF = tf.constant(L_TOTAL, dtype=tf.float32)
BETA_VEC_TF = tf.constant(BETA_VEC.reshape(1, N_AGES - 1), dtype=tf.float32)

RAW_STATE_DIM = 1 + N_AGES       # [z, k_1,...,k_N]
FEATURE_DIM = 1 + NUM_SHOCKS + 2 + 5 + 4 * N_AGES + NUM_SHOCKS
N_CHOICES = N_AGES - 1
POLICY_DIM = N_CHOICES           # savings a^1,...,a^{N-1}

print("=== Analytic OLG parameters ===")
print(f"N_AGES = {N_AGES}, raw state dim = {RAW_STATE_DIM}, feature dim = {FEATURE_DIM}")
print(f"policy dim = {POLICY_DIM}")
print(f"BETA = {BETA}, GAMMA = {GAMMA}, ALPHA = {ALPHA}")
print("TFP:", TFP)
print("Depreciation:", DEPR)
print("Transition matrix PI:")
print(PI)
print("Labor endowment:", LABOR)
print("Closed-form savings rates used for diagnostics:")
for age, rate in zip(AGES[:-1], BETA_VEC):
    print(f"  age {age}: {rate:.6f}")

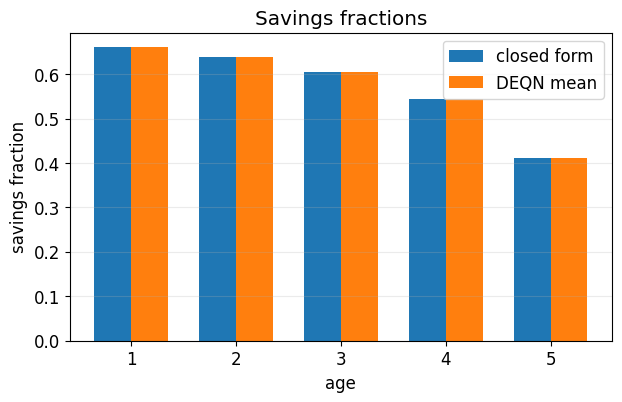

fig, ax = plt.subplots(figsize=(7, 3.5))
ax.bar(AGES[:-1], BETA_VEC)
ax.set_title("Closed-form savings rates by age")
ax.set_xlabel("age")
ax.set_ylabel("savings fraction")
ax.grid(alpha=0.25, axis="y")
plt.show()

# ============================================================
# State representation, firm prices, and network features
# ============================================================
EPS = 1.0e-8
CONSUMPTION_FLOOR = 1.0e-8

# Feature scales.  These are numerical normalizations, not equilibrium targets.
ASSET_SCALE = 1.0
AGG_K_SCALE = max(1.0, 0.4 * N_AGES)
AGG_L_SCALE = max(1.0, L_TOTAL)
PRICE_SCALE = 1.0
OUTPUT_SCALE = 1.0

# Broad feasible boxes for exogenous training states and initial simulation
# heads.  These draws deliberately do not use a lifecycle shape, steady state,
# or the closed-form solution.
EXOGENOUS_K_LOW = 0.005
EXOGENOUS_K_HIGH = 1.00
INITIAL_K_LOW = 0.005
INITIAL_K_HIGH = 1.00

EMERGENCY_REPAIR_BAD_STATES = True
SIM_REPAIR_AGG_K_MIN = 1.0e-8
SIM_REPAIR_AGG_K_MAX = 1.0e3
SIM_REPAIR_ABS_K_MAX = 1.0e3


def unpack_state(states):
    """Return integer shock indices and capital holdings."""
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    z = tf.cast(tf.round(states[:, 0]), tf.int32)
    k = states[:, 1:1 + N_AGES]
    return z, k


def assemble_states_tf(z, k):
    """Assemble a TensorFlow raw state array."""
    z = tf.cast(tf.reshape(z, [-1, 1]), tf.float32)
    return tf.concat([z, tf.cast(k, tf.float32)], axis=1)


def assemble_states_np(z, k):
    """Assemble a NumPy raw state array."""
    return np.concatenate([
        np.asarray(z, dtype=np.float32).reshape(-1, 1),
        np.asarray(k, dtype=np.float32),
    ], axis=1).astype(np.float32)


def firm_prices_from_components(K, eta, depr):
    """Return r, w, and aggregate output for the analytic OLG production function."""
    K_safe = tf.maximum(tf.cast(K, tf.float32), EPS)
    eta = tf.cast(eta, tf.float32)
    depr = tf.cast(depr, tf.float32)
    L = tf.ones_like(K_safe) * L_TOTAL_TF
    r = ALPHA * eta * tf.pow(K_safe, ALPHA - 1.0) * tf.pow(L, 1.0 - ALPHA) + (1.0 - depr)
    w = (1.0 - ALPHA) * eta * tf.pow(K_safe, ALPHA) * tf.pow(L, -ALPHA)
    Y = eta * tf.pow(K_safe, ALPHA) * tf.pow(L, 1.0 - ALPHA) + (1.0 - depr) * K_safe
    return r, w, Y


def state_prices(states):
    """Prices and aggregates implied by the raw state."""
    z, k = unpack_state(states)
    eta = tf.gather(TFP_TF, z)
    depr = tf.gather(DEPR_TF, z)
    K = tf.reduce_sum(k, axis=1, keepdims=True)
    r, w, Y = firm_prices_from_components(K, eta, depr)
    return K, r, w, Y, eta, depr


def current_income(states):
    """Income before current savings choices: r k + w l."""
    _, k = unpack_state(states)
    K, r, w, Y, eta, depr = state_prices(states)
    financial_income = r * k
    labor_income = w * LABOR_TF
    income = financial_income + labor_income
    return income, labor_income, financial_income, K, r, w, Y, eta, depr


def network_features(states):
    """Build the augmented input used by the neural net.

    The raw state remains [z, k].  The augmentation supplies the same type of
    redundant economic information used in the larger OLG notebook: shock
    indicators, transition probabilities, prices, capital, financial income,
    labor income, and total income.
    """
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    z, k = unpack_state(states)
    income, labor_income, financial_income, K, r, w, Y, eta, depr = current_income(states)
    z_float = tf.cast(tf.reshape(z, [-1, 1]), tf.float32)
    one_hot_z = tf.one_hot(z, NUM_SHOCKS, dtype=tf.float32)
    transition_row = tf.gather(PI_TF, z)
    features = tf.concat([
        z_float / max(1.0, NUM_SHOCKS - 1.0),
        one_hot_z,
        eta,
        depr,
        K / AGG_K_SCALE,
        tf.ones_like(K) * (L_TOTAL / AGG_L_SCALE),
        r / PRICE_SCALE,
        w / PRICE_SCALE,
        Y / OUTPUT_SCALE,
        k / ASSET_SCALE,
        financial_income / ASSET_SCALE,
        labor_income / ASSET_SCALE,
        income / ASSET_SCALE,
        transition_row,
    ], axis=1)
    return features


# Quick dimension check on random raw states.
_X_dim_check = np.zeros((3, RAW_STATE_DIM), dtype=np.float32)
_X_dim_check[:, 0] = np.arange(3) % NUM_SHOCKS
_X_dim_check[:, 1:1 + N_AGES] = 0.1
_X_dim_check[:, 1] = 0.0
assert int(network_features(_X_dim_check).shape[1]) == FEATURE_DIM
print(f"network feature dimension check passed: {FEATURE_DIM}")

# ============================================================
# Neural network and economically admissible policy transform
# ============================================================
# The last layer is initialized at zero.  The policy transform maps raw outputs
# to savings fractions in (0,1), so current consumption is positive whenever
# income is positive.  This is a numerical feasibility transform, not a target
# policy: the closed-form savings rates are not used in training.
MIN_SAVING_FRACTION = 1.0e-6
MAX_SAVING_FRACTION = 1.0 - 1.0e-5
POLICY_LOGIT_SHIFT = 0.0


def build_network():
    return keras.Sequential([
        keras.layers.Input(shape=(FEATURE_DIM,)),
        keras.layers.Dense(HIDDEN_UNITS_1, activation="relu"),
        keras.layers.Dense(HIDDEN_UNITS_2, activation="relu"),
        keras.layers.Dense(
            POLICY_DIM,
            activation=None,
            kernel_initializer="zeros",
            bias_initializer="zeros",
        ),
    ], name="OLG_DEQN_analytic")


def policy(states, model):
    """Map raw states to admissible savings policies.

    Returns
    -------
    a             : savings for ages 1,...,N-1
    savings_frac  : a divided by current income, in (0,1)
    """
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    raw = model(network_features(states))
    income, _, _, _, _, _, _, _, _ = current_income(states)
    income_choice = tf.maximum(income[:, :N_CHOICES], 0.0)
    savings_frac = MIN_SAVING_FRACTION + (MAX_SAVING_FRACTION - MIN_SAVING_FRACTION) * tf.nn.sigmoid(
        raw + POLICY_LOGIT_SHIFT
    )
    a = savings_frac * income_choice
    return a, savings_frac

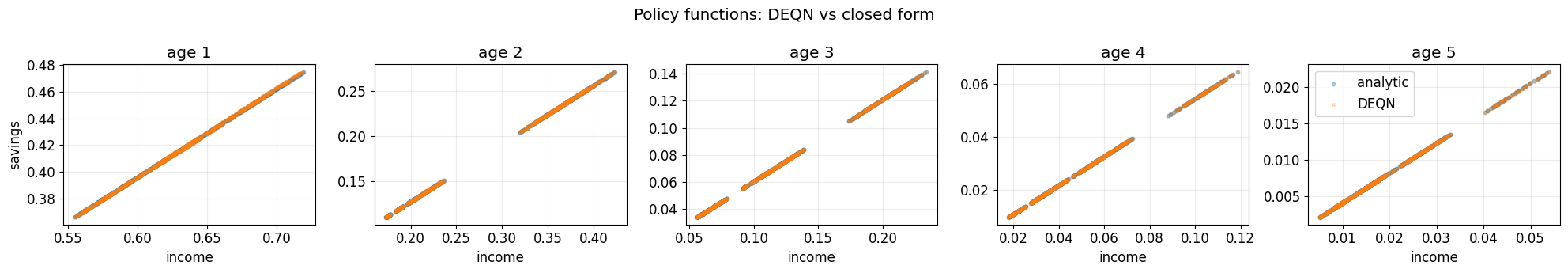

def analytical_policy(states):
    """Closed-form solution for diagnostics only."""
    income, _, _, _, _, _, _, _, _ = current_income(states)
    return income[:, :N_CHOICES] * BETA_VEC_TF


def policy_fingerprint(states, model):
    """Dimensionless policy vector for policy-drift diagnostics."""
    a, frac = policy(states, model)
    return tf.concat([tf.math.log1p(a), frac], axis=1)

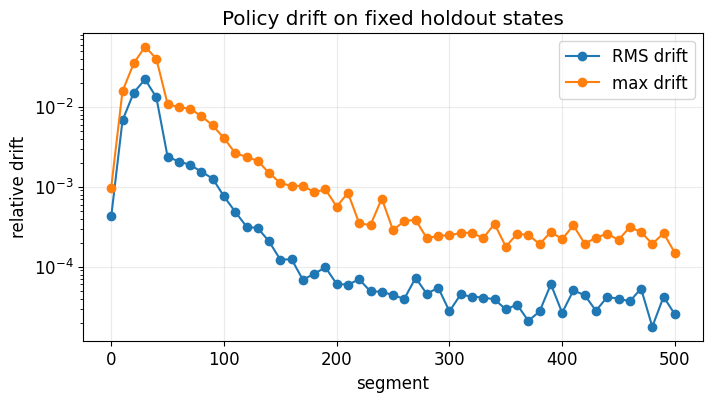

def relative_policy_drift(previous, current):
    previous = np.asarray(previous, dtype=np.float64)
    current = np.asarray(current, dtype=np.float64)
    diff = current - previous
    scale = 1.0 + np.sqrt(np.mean(previous ** 2))
    return float(np.sqrt(np.mean(diff ** 2)) / scale), float(np.max(np.abs(diff)) / scale)


def policy_error_against_analytic(states, model):
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    a_deqn, frac = policy(states, model)
    a_exact = analytical_policy(states)
    rel_error = (a_deqn - a_exact) / tf.maximum(tf.abs(a_exact), CONSUMPTION_FLOOR)
    frac_error = frac - BETA_VEC_TF
    return rel_error, frac_error, a_deqn, a_exact, frac


model_check = build_network()
a0, frac0 = policy(_X_dim_check, model_check)
print("Initial-policy smoke check")
print(f"  mean savings fraction = {float(tf.reduce_mean(frac0)):.4f}")
print(f"  min savings           = {float(tf.reduce_min(a0)):.4e}")
print(f"  max savings           = {float(tf.reduce_max(a0)):.4e}")

# ============================================================
# Residuals and loss
# ============================================================

def marginal_utility(c):
    return tf.pow(tf.maximum(c, CONSUMPTION_FLOOR), -GAMMA)


def inverse_marginal_utility(x):
    return tf.pow(tf.maximum(x, CONSUMPTION_FLOOR), -1.0 / GAMMA)


def consumption_from_savings(states, a):
    """Budget constraint for all ages, including a_N=0."""
    income, labor_income, financial_income, K, r, w, Y, eta, depr = current_income(states)
    a_all = tf.concat([a, tf.zeros([tf.shape(states)[0], 1], dtype=tf.float32)], axis=1)
    c_raw = income - a_all
    return c_raw, income, K, r, w, Y


@tf.function
def compute_residuals(states, model):
    """Return the DEQN loss and residual components on a state batch."""
    states = tf.convert_to_tensor(states, dtype=tf.float32)
    m = tf.shape(states)[0]
    z, _ = unpack_state(states)
    probs_next = tf.gather(PI_TF, z)

    a, frac = policy(states, model)
    c_raw, income, K, r, w, Y = consumption_from_savings(states, a)
    c = tf.maximum(c_raw, CONSUMPTION_FLOOR)

    k_next = tf.concat([tf.zeros([m, 1], dtype=tf.float32), a], axis=1)
    K_next_raw = tf.reduce_sum(k_next, axis=1, keepdims=True)

    expected_marginal = tf.zeros([m, N_CHOICES], dtype=tf.float32)
    future_c_raw = []

    for shock in range(NUM_SHOCKS):
        z_next = tf.ones([m], dtype=tf.float32) * float(shock)
        x_next = assemble_states_tf(z_next, k_next)
        a_next, _ = policy(x_next, model)
        c_next_raw, _, _, r_next, _, _ = consumption_from_savings(x_next, a_next)
        c_next = tf.maximum(c_next_raw, CONSUMPTION_FLOOR)

        prob = probs_next[:, shock:shock + 1]
        expected_marginal += prob * r_next * marginal_utility(c_next[:, 1:N_AGES])
        future_c_raw.append(c_next_raw)

    euler = inverse_marginal_utility(BETA * expected_marginal) / c[:, 0:N_CHOICES] - 1.0

    all_c_raw = tf.concat([c_raw] + future_c_raw, axis=1)
    neg_c_penalty = tf.maximum(-all_c_raw, 0.0) / (1.0 + tf.abs(all_c_raw))
    bad_K_penalty = tf.maximum(-K_next_raw, 0.0) / (1.0 + tf.abs(K_next_raw))

    loss = (
        EULER_WEIGHT * tf.reduce_mean(tf.square(euler))
        + PENALTY_WEIGHT * (
            tf.reduce_mean(tf.square(neg_c_penalty)) + tf.reduce_mean(tf.square(bad_K_penalty))
        )
    )

    components = {
        "euler_capital": euler,
        "c_raw": c_raw,
        "c": c,
        "a": a,
        "savings_fraction": frac,
        "K": K,
        "Y": Y,
        "negative_consumption_penalty": neg_c_penalty,
        "bad_K_penalty": bad_K_penalty,
    }
    return loss, components


_loss_check, _comp_check = compute_residuals(_X_dim_check, model_check)
print(f"initial residual finite: {np.isfinite(float(_loss_check.numpy()))}, loss = {float(_loss_check.numpy()):.3e}")

# ============================================================
# Training-data construction
# ============================================================

def _sample_feasible_box(n, k_low, k_high, local_rng):
    """Random feasible states from broad boxes; no lifecycle or steady-state prior."""
    z = local_rng.integers(0, NUM_SHOCKS, size=n).astype(np.float32)
    log_k = local_rng.uniform(np.log(k_low), np.log(k_high), size=(n, N_AGES)).astype(np.float32)
    k = np.exp(log_k).astype(np.float32)
    k[:, 0] = 0.0
    return assemble_states_np(z, k)


def sample_exogenous_states(n, seed_offset=0):
    local_rng = np.random.default_rng(SEED + 1000 + seed_offset)
    return _sample_feasible_box(n, EXOGENOUS_K_LOW, EXOGENOUS_K_HIGH, local_rng)


def sample_feasible_initial_states(n, seed_offset=0):
    local_rng = np.random.default_rng(SEED + 2000 + seed_offset)
    return _sample_feasible_box(n, INITIAL_K_LOW, INITIAL_K_HIGH, local_rng)


def draw_next_shocks(z_current):
    z_int = np.asarray(np.round(z_current), dtype=np.int64)
    u = rng.random(len(z_int))
    return np.sum(u[:, None] > PI_CUM[z_int], axis=1).astype(np.float32)


def one_step_transition(states_np, model, z_next_np):
    states_tf = tf.constant(states_np, dtype=tf.float32)
    a, _ = policy(states_tf, model)
    a_np = a.numpy().astype(np.float32)
    k_next = np.concatenate([np.zeros((states_np.shape[0], 1), dtype=np.float32), a_np], axis=1)
    return assemble_states_np(z_next_np, k_next)


def one_step_transition_analytic(states_np, z_next_np):
    states_tf = tf.constant(states_np, dtype=tf.float32)
    a_np = analytical_policy(states_tf).numpy().astype(np.float32)
    k_next = np.concatenate([np.zeros((states_np.shape[0], 1), dtype=np.float32), a_np], axis=1)
    return assemble_states_np(z_next_np, k_next)


def bad_state_mask(states_np):
    states_np = np.asarray(states_np, dtype=np.float32)
    finite = np.all(np.isfinite(states_np), axis=1)
    z = states_np[:, 0]
    k = states_np[:, 1:1 + N_AGES]
    K = np.sum(k, axis=1)
    mask_good = (
        finite
        & (z >= -0.5) & (z <= NUM_SHOCKS - 0.5)
        & np.all(k >= -1.0e-8, axis=1)
        & (K >= SIM_REPAIR_AGG_K_MIN)
        & (K <= SIM_REPAIR_AGG_K_MAX)
        & np.all(np.abs(k) <= SIM_REPAIR_ABS_K_MAX, axis=1)
    )
    return ~mask_good


def simulate_path(X0, model, n_steps, seed_offset=0, return_time_major=False):
    """Simulate under the current learned policy.

    Initial states are random feasible states from broad boxes, not steady-state
    values, analytical-policy states, or lifecycle profiles.  Emergency repair
    only replaces numerically invalid states by fresh feasible-box draws.
    """
    X = np.asarray(X0, dtype=np.float32).copy()
    n_tracks = X.shape[0]
    path = np.empty((n_steps, n_tracks, RAW_STATE_DIM), dtype=np.float32)
    n_repaired = 0

    for t in range(n_steps):
        path[t] = X
        z_next = draw_next_shocks(X[:, 0])
        X_next = one_step_transition(X, model, z_next)
        if EMERGENCY_REPAIR_BAD_STATES:
            bad = bad_state_mask(X_next)
            if np.any(bad):
                n_bad = int(np.sum(bad))
                X_next[bad] = sample_feasible_initial_states(n_bad, seed_offset=seed_offset + 10_000 + t)
                n_repaired += n_bad
        X = X_next

    if return_time_major:
        return path, X, n_repaired
    return path.reshape(-1, RAW_STATE_DIM), X, n_repaired


def get_training_segment(X_start, model, segment_index):
    if SAMPLING_MODE == "exogenous":
        X = sample_exogenous_states(STATES_PER_SEGMENT, seed_offset=segment_index)
        return X, X_start, 0
    if SAMPLING_MODE == "simulation":
        return simulate_path(X_start, model, SIMULATION_LENGTH, seed_offset=segment_index)
    raise ValueError(f"Unknown SAMPLING_MODE: {SAMPLING_MODE}")


def sample_time_invariance_anchor_states(n):
    return sample_exogenous_states(n, seed_offset=999_001)


X_sampling_check = sample_exogenous_states(5)
print("sample state shape:", X_sampling_check.shape)
print("bad sampled states:", int(np.sum(bad_state_mask(X_sampling_check))))

# ============================================================
# Mini-batches, optimizer, and training loop
# ============================================================

def make_optimizer(learning_rate):
    if OPTIMIZER_NAME == "Adam":
        return keras.optimizers.Adam(learning_rate=learning_rate)
    if OPTIMIZER_NAME == "RMSprop":
        return keras.optimizers.RMSprop(learning_rate=learning_rate)
    if OPTIMIZER_NAME == "SGD":
        return keras.optimizers.SGD(learning_rate=learning_rate, momentum=0.0)
    raise ValueError(f"Unknown optimizer: {OPTIMIZER_NAME}")


def hyperparameters_for_segment(segment):
    for item in TRAINING_SCHEDULE:
        if segment < int(item["until"]):
            return float(item["learning_rate"]), int(item["batch_size"])
    item = TRAINING_SCHEDULE[-1]
    return float(item["learning_rate"]), int(item["batch_size"])


def set_optimizer_learning_rate(optimizer, learning_rate):
    try:
        optimizer.learning_rate.assign(learning_rate)
    except Exception:
        optimizer.learning_rate = learning_rate


def iterate_minibatches(X, batch_size):
    X = np.asarray(X, dtype=np.float32)
    n = X.shape[0]
    if SHUFFLE_STATES_WITHIN_SEGMENT:
        order = rng.permutation(n)
    else:
        order = np.arange(n)
    for start in range(0, n, batch_size):
        idx = order[start:start + batch_size]
        if len(idx) > 0:
            yield tf.constant(X[idx], dtype=tf.float32)


@tf.function
def train_step(X_batch, model, optimizer):
    with tf.GradientTape() as tape:
        loss, _ = compute_residuals(X_batch, model)
    grads = tape.gradient(loss, model.trainable_variables)
    grads = [tf.zeros_like(v) if g is None else g for g, v in zip(grads, model.trainable_variables)]
    if CLIP_NORM is not None:
        grads, _ = tf.clip_by_global_norm(grads, CLIP_NORM)
    optimizer.apply_gradients(zip(grads, model.trainable_variables))
    return loss


def train_on_segment_states(X_segment, model, optimizer, batch_size):
    losses = []
    for _ in range(PASSES_PER_SEGMENT):
        for X_batch in iterate_minibatches(X_segment, batch_size):
            losses.append(float(train_step(X_batch, model, optimizer).numpy()))
    return float(np.mean(losses)), len(losses)


def summarize_monitor_components(X, components, model):
    rel_policy, frac_policy, _, _, _ = policy_error_against_analytic(tf.constant(X, dtype=tf.float32), model)
    return {
        "mean_abs_euler_capital": float(tf.reduce_mean(tf.abs(components["euler_capital"])).numpy()),
        "mean_abs_policy_error": float(tf.reduce_mean(tf.abs(rel_policy)).numpy()),
        "max_abs_policy_error": float(tf.reduce_max(tf.abs(rel_policy)).numpy()),
        "mean_abs_fraction_error": float(tf.reduce_mean(tf.abs(frac_policy)).numpy()),
        "share_negative_consumption": float(tf.reduce_mean(tf.cast(components["c_raw"] <= 0.0, tf.float32)).numpy()),
    }


model = build_network()
learning_rate_0, _batch_size_0 = hyperparameters_for_segment(0)
optimizer = make_optimizer(learning_rate_0)

X_start = sample_feasible_initial_states(N_TRAJECTORIES)
X_anchor = sample_time_invariance_anchor_states(TIME_INVARIANCE_ANCHOR_STATES)
anchor_fingerprint_previous = policy_fingerprint(tf.constant(X_anchor), model).numpy()

history = {
    "segment": [],
    "loss": [],
    "train_loss": [],
    "mean_abs_euler_capital": [],
    "mean_abs_policy_error": [],
    "max_abs_policy_error": [],
    "mean_abs_fraction_error": [],
    "share_negative_consumption": [],
    "policy_drift_rms": [],
    "policy_drift_max": [],
    "K_min": [],
    "K_max": [],
    "repairs": [],
    "n_updates": [],
}

print("Starting training")
print(f"  segments: {NUM_SEGMENTS}")
print(f"  states per segment: {STATES_PER_SEGMENT}")
print(f"  passes per segment: {PASSES_PER_SEGMENT}")
start_time = time.time()
last_segment = None

for segment in range(NUM_SEGMENTS):
    learning_rate, batch_size = hyperparameters_for_segment(segment)
    set_optimizer_learning_rate(optimizer, learning_rate)

    X_segment, X_end, n_repaired = get_training_segment(X_start, model, segment)
    train_loss, n_updates = train_on_segment_states(X_segment, model, optimizer, batch_size)
    last_segment = X_segment

    if SAMPLING_MODE == "simulation":
        X_start = X_end

    if segment % MONITOR_EVERY == 0 or segment == NUM_SEGMENTS - 1:
        loss_now, components_now = compute_residuals(tf.constant(X_segment), model)
        monitor = summarize_monitor_components(X_segment, components_now, model)
        K_np = X_segment[:, 1:1 + N_AGES].sum(axis=1)
        anchor_fingerprint_current = policy_fingerprint(tf.constant(X_anchor), model).numpy()
        drift_rms, drift_max = relative_policy_drift(anchor_fingerprint_previous, anchor_fingerprint_current)
        anchor_fingerprint_previous = anchor_fingerprint_current

        history["segment"].append(int(segment))
        history["loss"].append(float(loss_now.numpy()))
        history["train_loss"].append(float(train_loss))
        for key, value in monitor.items():
            history[key].append(value)
        history["policy_drift_rms"].append(drift_rms)
        history["policy_drift_max"].append(drift_max)
        history["K_min"].append(float(np.min(K_np)))
        history["K_max"].append(float(np.max(K_np)))
        history["repairs"].append(int(n_repaired))
        history["n_updates"].append(int(n_updates))

        elapsed = time.time() - start_time
        print(
            f"seg {segment:6d} | log10(loss)={np.log10(max(history['loss'][-1], 1e-30)): .3f} | "
            f"Euler={monitor['mean_abs_euler_capital']:.3e} | "
            f"policy err={monitor['mean_abs_policy_error']:.3e} | "
            f"K=[{history['K_min'][-1]:.3f},{history['K_max'][-1]:.3f}] | "
            f"drift={drift_rms:.2e} | repairs={n_repaired} | {elapsed:.1f}s"
        )

print(f"Training finished in {time.time() - start_time:.1f} seconds")

# ============================================================
# Final diagnostics: residual tables and data-cloud checks
# ============================================================

def _np_abs(x):
    return np.abs(np.asarray(x, dtype=np.float64).reshape(-1))


def stats_row(values, scale=1.0):
    v = scale * _np_abs(values)
    return {
        "mean": float(np.mean(v)),
        "max": float(np.max(v)),
        "p0.1": float(np.quantile(v, 0.001)),
        "p10": float(np.quantile(v, 0.10)),
        "p50": float(np.quantile(v, 0.50)),
        "p90": float(np.quantile(v, 0.90)),
        "p99.9": float(np.quantile(v, 0.999)),
    }


def residual_table(X, model):
    loss, comp = compute_residuals(tf.constant(X, dtype=tf.float32), model)
    rel_policy, frac_policy, _, _, _ = policy_error_against_analytic(tf.constant(X, dtype=tf.float32), model)
    rows = {
        "Rel Ee capital [%]": stats_row(comp["euler_capital"].numpy(), scale=100.0),
        "Policy error vs analytic [%]": stats_row(rel_policy.numpy(), scale=100.0),
        "Savings-fraction error": stats_row(frac_policy.numpy()),
    }
    table = pd.DataFrame(rows).T[["mean", "max", "p0.1", "p10", "p50", "p90", "p99.9"]]
    return float(loss.numpy()), table, comp


def data_cloud_report(label, X, model):
    X = np.asarray(X, dtype=np.float32)
    z = X[:, 0].astype(int)
    k = X[:, 1:1 + N_AGES]
    loss, comp = compute_residuals(tf.constant(X), model)
    c_raw = comp["c_raw"].numpy()
    rel_policy, frac_policy, _, _, _ = policy_error_against_analytic(tf.constant(X, dtype=tf.float32), model)
    print(f"\n{label}")
    print(f"  states                         {X.shape[0]}")
    print(f"  shock counts                   {np.bincount(z, minlength=NUM_SHOCKS)}")
    print(f"  aggregate K range              [{k.sum(axis=1).min():.4f}, {k.sum(axis=1).max():.4f}]")
    print(f"  individual k range             [{k.min():.4f}, {k.max():.4f}]")
    print(f"  consumption range under policy  [{c_raw.min():.4e}, {c_raw.max():.4e}]")
    print(f"  share c<=0 under policy         {np.mean(c_raw <= 0.0):.4%}")
    print(f"  mean abs Euler wedge            {float(tf.reduce_mean(tf.abs(comp['euler_capital'])).numpy()):.3e}")
    print(f"  mean abs policy error           {float(tf.reduce_mean(tf.abs(rel_policy)).numpy()):.3e}")
    print(f"  max abs policy error            {float(tf.reduce_max(tf.abs(rel_policy)).numpy()):.3e}")
    print(f"  loss                            {float(loss.numpy()):.3e}")


def simulated_evaluation_states(model, n_eval_tracks=EVAL_TRACKS, burn_in=EVAL_BURN_IN, eval_length=EVAL_LENGTH):
    X0 = sample_feasible_initial_states(n_eval_tracks, seed_offset=777)
    path, _, n_repaired = simulate_path(X0, model, burn_in + eval_length, seed_offset=888, return_time_major=True)
    if n_repaired > 0:
        print(f"evaluation simulation repaired {n_repaired} numerically invalid states")
    path_eval = path[burn_in:]
    return path_eval.reshape(-1, RAW_STATE_DIM)


N_EVAL_EXOGENOUS = 1024 if MODE == "smoke" else 8192
X_eval_exog = sample_exogenous_states(N_EVAL_EXOGENOUS, seed_offset=54321)
X_eval_sim = simulated_evaluation_states(model)

if last_segment is not None:
    data_cloud_report("Last training segment", last_segment, model)
data_cloud_report("Out-of-sample exogenous state cloud", X_eval_exog, model)
data_cloud_report("Out-of-sample simulated state cloud", X_eval_sim, model)

for label, X in [
    ("Last training segment", last_segment if last_segment is not None else X_eval_exog),
    ("Out-of-sample exogenous states", X_eval_exog),
    ("Out-of-sample simulated states", X_eval_sim),
]:
    loss, table, _ = residual_table(X, model)
    print(f"\n{label}: loss = {loss:.3e}")
    display(table)

# ============================================================
# Policy-stability diagnostics
# ============================================================

def final_time_invariance_report():
    print("\nTime-invariance / policy-stability diagnostic")
    fp_1 = policy_fingerprint(tf.constant(X_anchor), model).numpy()
    fp_2 = policy_fingerprint(tf.constant(X_anchor), model).numpy()
    same_state_max = float(np.max(np.abs(fp_2 - fp_1)))
    print(f"  same-state repeatability max abs difference = {same_state_max:.3e}")

    if len(history["policy_drift_rms"]) == 0:
        print("  no policy-drift history recorded")
        return
    last_rms = history["policy_drift_rms"][-1]
    last_max = history["policy_drift_max"][-1]
    print(f"  last monitor-to-monitor policy drift, rms = {last_rms:.3e}")
    print(f"  last monitor-to-monitor policy drift, max = {last_max:.3e}")
    print(f"  drift tolerances: rms <= {TIME_INVARIANCE_TOL_RMS:g}, max <= {TIME_INVARIANCE_TOL_MAX:g}")
    if last_rms <= TIME_INVARIANCE_TOL_RMS and last_max <= TIME_INVARIANCE_TOL_MAX:
        print("  PASS: policy drift is small on the fixed holdout cloud.")
    else:
        print("  WARNING: policy is still moving. Train longer or lower the learning rate.")


def fixed_shock_path_report(model, shock=1, n_tracks=16, n_steps=200):
    """Iterate the learned policy under a fixed aggregate shock.

    This is the OLG analogue of the IRBC zero-shock check: not a deterministic
    steady state of the original stochastic economy, but a useful numerical
    sanity check for time-homogeneous policy iteration.
    """
    X = sample_feasible_initial_states(n_tracks, seed_offset=4141)
    distances = []
    for _ in range(n_steps):
        z_next = np.full(n_tracks, shock, dtype=np.float32)
        X_next = one_step_transition(X, model, z_next)
        k = np.maximum(X[:, 2:1 + N_AGES], EPS)      # skip newborn k_1 = 0
        kp = np.maximum(X_next[:, 2:1 + N_AGES], EPS)
        dist_k = np.max(np.abs(np.log(kp / k)))
        distances.append(float(dist_k))
        X = X_next
    print("\nFixed-shock policy-iteration diagnostic")
    print(f"  fixed shock index            {shock}")
    print(f"  final scaled transition dist {distances[-1]:.3e}")
    print(f"  final aggregate K range      [{X[:, 1:1 + N_AGES].sum(axis=1).min():.4f}, {X[:, 1:1 + N_AGES].sum(axis=1).max():.4f}]")
    return np.asarray(distances), X


final_time_invariance_report()
fixed_distances, X_fixed_final = fixed_shock_path_report(model, shock=1)

# ============================================================
# Simple plots and analytic validation
# ============================================================

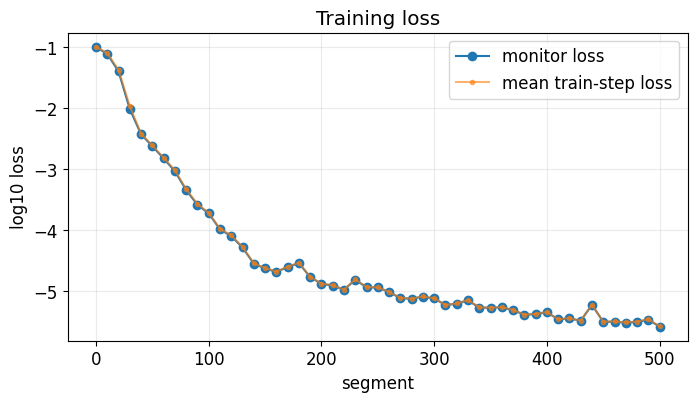

if len(history["segment"]) > 0:
    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(history["segment"], np.log10(np.maximum(history["loss"], 1e-30)), marker="o", label="monitor loss")
    ax.plot(history["segment"], np.log10(np.maximum(history["train_loss"], 1e-30)), marker=".", alpha=0.6, label="mean train-step loss")
    ax.set_xlabel("segment")
    ax.set_ylabel("log10 loss")
    ax.set_title("Training loss")
    ax.grid(alpha=0.25)
    ax.legend()
    plt.show()

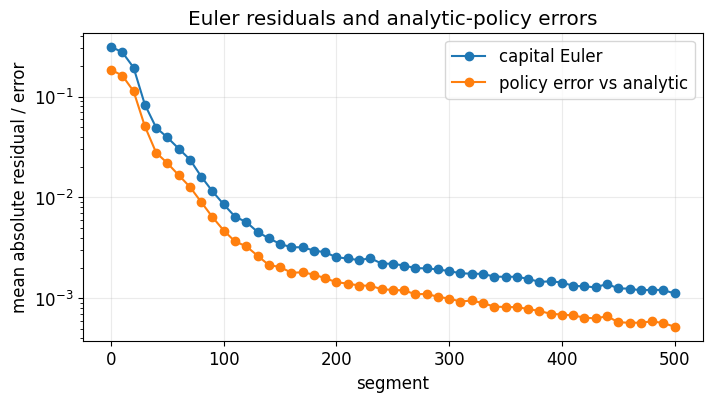

    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(history["segment"], history["mean_abs_euler_capital"], marker="o", label="capital Euler")
    ax.plot(history["segment"], history["mean_abs_policy_error"], marker="o", label="policy error vs analytic")
    ax.set_yscale("log")
    ax.set_xlabel("segment")
    ax.set_ylabel("mean absolute residual / error")
    ax.set_title("Euler residuals and analytic-policy errors")
    ax.grid(alpha=0.25)
    ax.legend()
    plt.show()

    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(history["segment"], history["policy_drift_rms"], marker="o", label="RMS drift")
    ax.plot(history["segment"], history["policy_drift_max"], marker="o", label="max drift")
    ax.set_yscale("log")
    ax.set_xlabel("segment")
    ax.set_ylabel("relative drift")
    ax.set_title("Policy drift on fixed holdout states")
    ax.grid(alpha=0.25)
    ax.legend()
    plt.show()

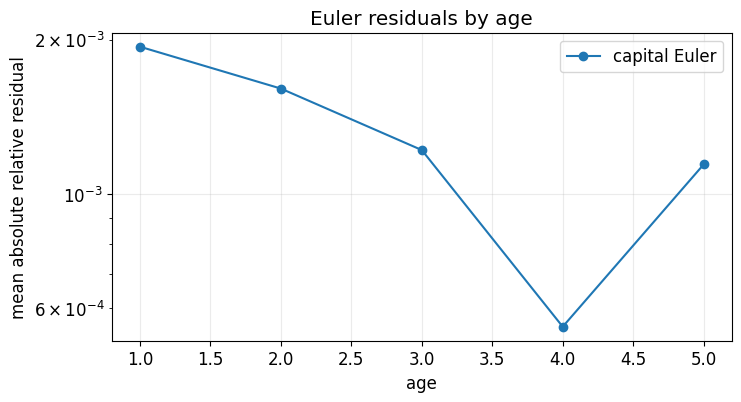

def plot_residuals_by_age(X, model, max_states=4096):
    X = np.asarray(X, dtype=np.float32)
    if X.shape[0] > max_states:
        idx = np.random.default_rng(SEED + 6161).choice(X.shape[0], size=max_states, replace=False)
        X = X[idx]
    _, comp = compute_residuals(tf.constant(X), model)
    e_cap = np.abs(comp["euler_capital"].numpy())
    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(AGES[:-1], np.mean(e_cap, axis=0), marker="o", label="capital Euler")
    ax.set_yscale("log")
    ax.set_xlabel("age")
    ax.set_ylabel("mean absolute relative residual")
    ax.set_title("Euler residuals by age")
    ax.grid(alpha=0.25)
    ax.legend()
    plt.show()


def plot_policy_against_analytic(X, model, max_states=1024):
    X = np.asarray(X, dtype=np.float32)
    if X.shape[0] > max_states:
        idx = np.random.default_rng(SEED + 7171).choice(X.shape[0], size=max_states, replace=False)
        X = X[idx]
    X_tf = tf.constant(X, dtype=tf.float32)
    income, _, _, _, _, _, _, _, _ = current_income(X_tf)
    rel_policy, frac_policy, a_deqn, a_exact, frac = policy_error_against_analytic(X_tf, model)
    income_np = income[:, :N_CHOICES].numpy()
    a_deqn_np = a_deqn.numpy()
    a_exact_np = a_exact.numpy()

    fig, axes = plt.subplots(1, N_CHOICES, figsize=(4 * N_CHOICES, 3.5), squeeze=False)
    axes = axes[0]
    for j, ax in enumerate(axes):
        ax.scatter(income_np[:, j], a_exact_np[:, j], s=10, marker="o", alpha=0.35, label="analytic")
        ax.scatter(income_np[:, j], a_deqn_np[:, j], s=8, marker="x", alpha=0.35, label="DEQN")
        ax.set_title(f"age {j + 1}")
        ax.set_xlabel("income")
        if j == 0:
            ax.set_ylabel("savings")
        ax.grid(alpha=0.25)
    axes[-1].legend(loc="best")
    fig.suptitle("Policy functions: DEQN vs closed form")
    plt.tight_layout()
    plt.show()

    mean_frac = np.mean(frac.numpy(), axis=0)
    fig, ax = plt.subplots(figsize=(7, 4))
    width = 0.35
    x = np.arange(1, N_AGES)
    ax.bar(x - width / 2, BETA_VEC, width, label="closed form")
    ax.bar(x + width / 2, mean_frac, width, label="DEQN mean")
    ax.set_xlabel("age")
    ax.set_ylabel("savings fraction")
    ax.set_title("Savings fractions")
    ax.grid(alpha=0.25, axis="y")
    ax.legend()
    plt.show()

    print("Savings-fraction comparison")
    rows = []
    for j in range(N_CHOICES):
        rows.append({
            "age": j + 1,
            "closed_form": BETA_VEC[j],
            "DEQN_mean": mean_frac[j],
            "abs_error": abs(mean_frac[j] - BETA_VEC[j]),
        })
    display(pd.DataFrame(rows))


def compare_exact_and_deqn_dynamics(model, n_tracks=1, n_steps=300, seed_offset=8181):
    local_rng = np.random.default_rng(SEED + seed_offset)
    X_deqn = sample_feasible_initial_states(n_tracks, seed_offset=seed_offset)
    X_exact = X_deqn.copy()
    K_deqn = []
    K_exact = []
    for _ in range(n_steps):
        K_deqn.append(np.sum(X_deqn[:, 1:1 + N_AGES], axis=1))
        K_exact.append(np.sum(X_exact[:, 1:1 + N_AGES], axis=1))
        z_cur = X_deqn[:, 0].astype(int)
        u = local_rng.random(n_tracks)
        z_next = np.sum(u[:, None] > PI_CUM[z_cur], axis=1).astype(np.float32)
        X_deqn = one_step_transition(X_deqn, model, z_next)
        X_exact = one_step_transition_analytic(X_exact, z_next)
    return np.asarray(K_deqn), np.asarray(K_exact)


plot_residuals_by_age(X_eval_sim, model)
plot_policy_against_analytic(X_eval_sim, model)

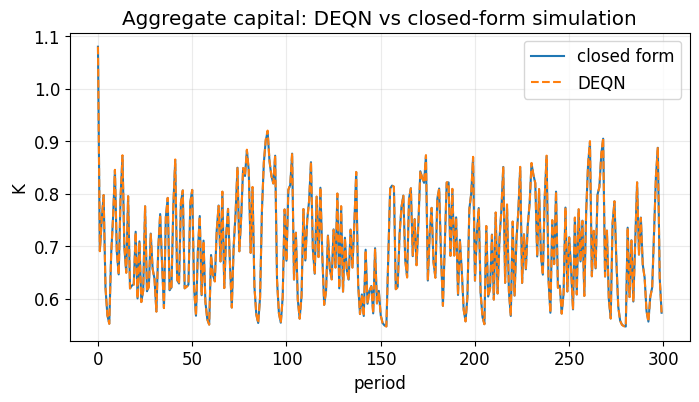

K_deqn, K_exact = compare_exact_and_deqn_dynamics(model)
fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(K_exact[:, 0], label="closed form")
ax.plot(K_deqn[:, 0], linestyle="--", label="DEQN")
ax.set_title("Aggregate capital: DEQN vs closed-form simulation")
ax.set_xlabel("period")
ax.set_ylabel("K")
ax.grid(alpha=0.25)
ax.legend()
plt.show()

rel_K_error = np.abs(K_deqn - K_exact) / np.maximum(np.abs(K_exact), EPS)
print("Aggregate-capital path error relative to closed form")
print(f"  mean = {np.mean(rel_K_error):.3e}")
print(f"  max  = {np.max(rel_K_error):.3e}")
